HINT:

1. INSTALL NO. 2 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR

(a) Install the protector with 2 new grommets.

(b) Install the 2 screws.

2. INSTALL NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR

HINT:

Use the same procedures described for the No. 2 luggage compartment side cover protector.

3. INSTALL REAR BUMPER ARM BRACKET LH

(a) Install the bumper arm bracket with the 2 bolts.

(b) Connect the connector.

4. INSTALL REAR BUMPER ARM BRACKET

HINT:

Use the same procedure to install the bumper arm bracket on the other side.

(a) Install the bumper arm bracket with the bolt.

5. INSTALL REAR NO. 2 BUMPER REINFORCEMENT

(a) Install the bumper reinforcement with the 2 bolts.

6. INSTALL REAR BUMPER SIDE SUPPORT LH

(a) Attach the 6 claws to install the bumper side support.

(b) Install the 3 screws.

7. INSTALL REAR BUMPER SIDE SUPPORT RH

HINT:

Use the same procedures described for the LH side.

8. INSTALL REAR UPPER BUMPER RETAINER LH

(a) Attach the 2 clips to install the bumper retainer.

9. INSTALL REAR UPPER BUMPER RETAINER RH

HINT:

Use the same procedures described for the LH side.

11. INSTALL REAR COMBINATION LIGHT ASSEMBLY RH

HINT:

Use the same procedures described for the LH side.

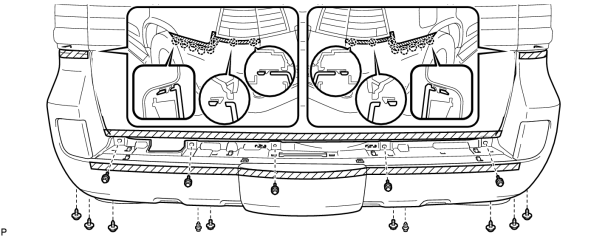

12. INSTALL REAR BUMPER COVER

(a) w/ Intuitive Parking Assist System:

Connect the No. 2 frame wire connector.

(b) Attach the 16 claws to install the bumper cover.

(c) Install the 7 bolts, 6 screws and 2 clips.

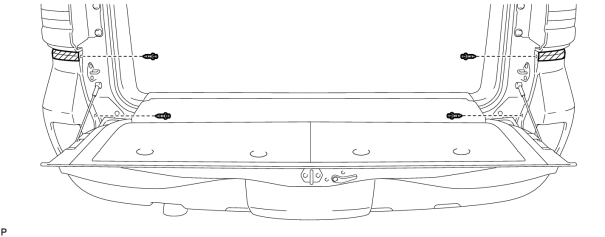

(d) Open the tail gate and install the 4 clips.

(e) Close the tail gate.

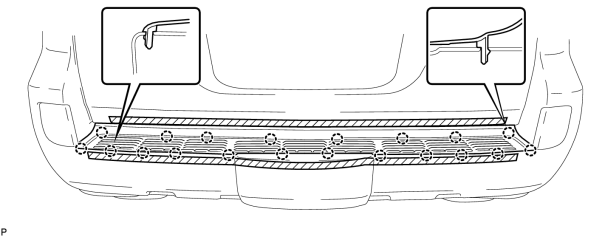

13. INSTALL REAR NO. 1 BUMPER PLATE

(a) Attach the 20 claws to install the bumper plate.
