1. INSTALL ROOF CARRIER ASSEMBLY

(a) Clean the threaded surface on the vehicle body with a non-residue solvent.

(b) Apply adhesive to the threads of the 8 bolts.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

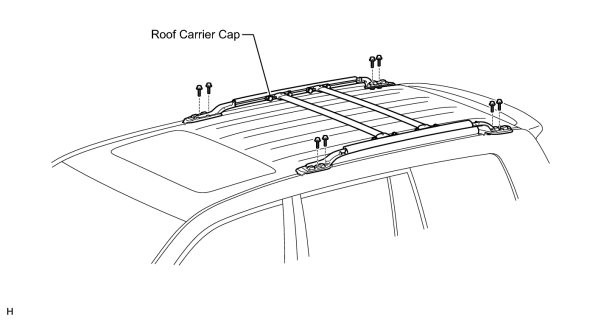

(c) Install the roof carrier with the 8 bolts.

Torque: 39 N·m (398 kgf·cm, 29 ft·lbf)

(d) Adjust the roof rack support positions and tighten the roof carrier caps.

2. INSTALL REAR ROOF RACK LEG COVER LH

(a) Attach the 2 guides and 4 claws to install the cover.

3. INSTALL REAR ROOF RACK LEG COVER RH

HINT:

Use the same procedures described for the LH side.

4. INSTALL FRONT ROOF RACK LEG COVER LH

(a) Attach the 2 guides and 4 claws to install the cover.

5. INSTALL FRONT ROOF RACK LEG COVER RH

HINT:

Use the same procedures described for the LH side.
