| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Vehicle Exterior | Section: Exterior Panels/Trim | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM0000038KJ002X |
| Title: EXTERIOR PANELS / TRIM: ROOF CARRIER: REMOVAL (2008 LX570) | ||
REMOVAL
1. REMOVE FRONT ROOF RACK LEG COVER LH
(a) Detach the 4 claws and 2 guides, and remove the cover.
2. REMOVE FRONT ROOF RACK LEG COVER RH
HINT:
Use the same procedures described for the LH side.
3. REMOVE REAR ROOF RACK LEG COVER LH
(a) Detach the 4 claws and 2 guides, and remove the cover.
4. REMOVE REAR ROOF RACK LEG COVER RH
HINT:
Use the same procedures described for the LH side.

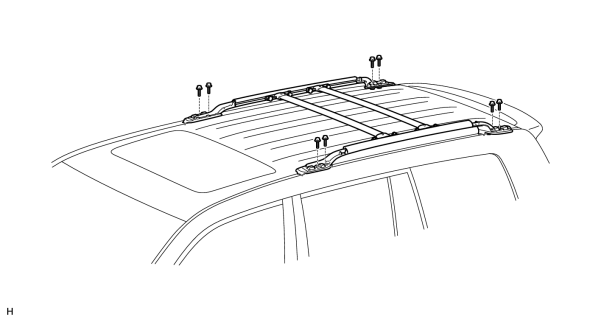

5. REMOVE ROOF CARRIER ASSEMBLY
(a) Remove the 8 bolts and roof carrier.
|
|
