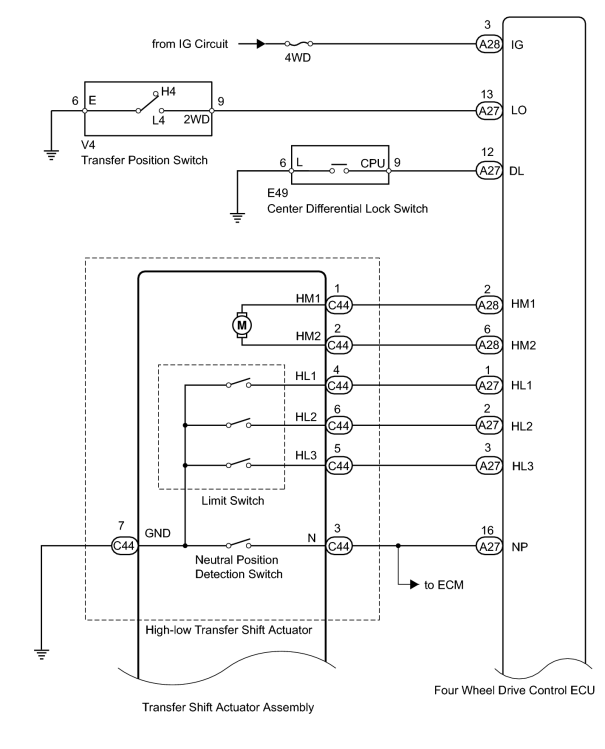

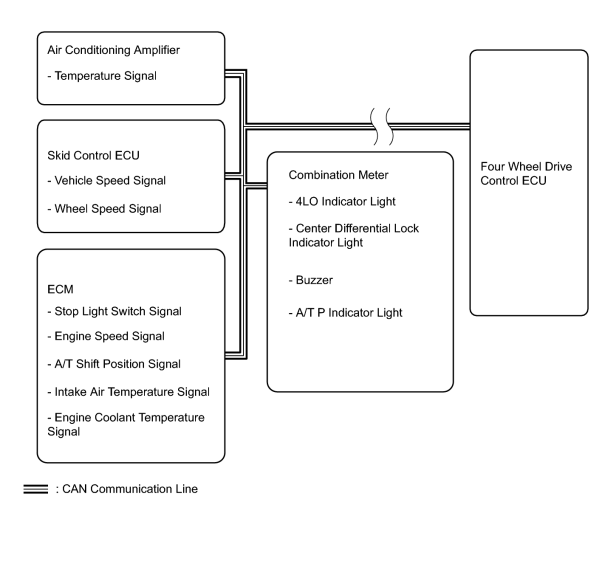

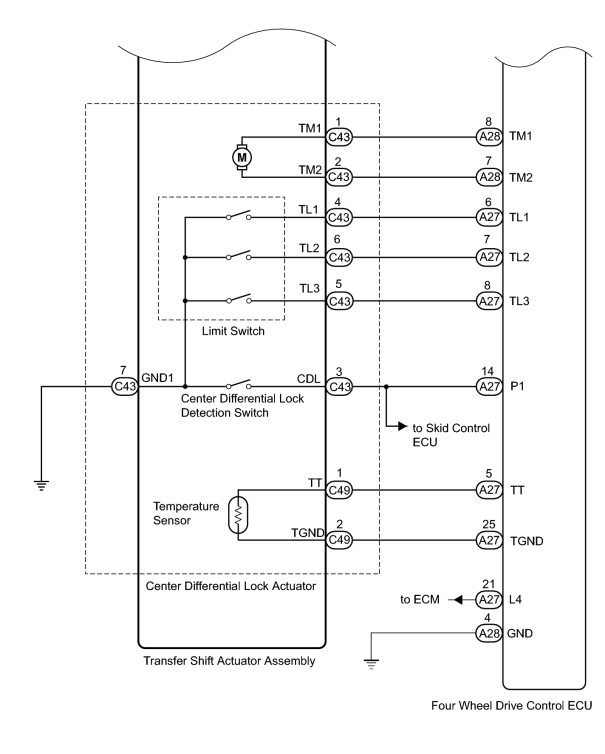

JF2A TRANSFER / 4WD / AWD: TRANSFER SYSTEM: SYSTEM DIAGRAM (2008 LX570)

Home › Drivetrain › Transfer/4wd/Awd › JF2A TRANSFER / 4WD / AWD: TRANSFER SYSTEM

Last Modified: 11-27-2007		1.6 U
Service Category: Drivetrain	Section: Transfer/4wd/Awd
Model Year: 2008	Model: LX570	Doc ID: RM0000038UE001X
Title: JF2A TRANSFER / 4WD / AWD: TRANSFER SYSTEM: SYSTEM DIAGRAM (2008 LX570)
