| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Vehicle Exterior | Section: Lighting (ext) | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM0000038X2002X |
| Title: LIGHTING (EXT): HEADLIGHT ASSEMBLY: DISASSEMBLY (2008 LX570) | ||
DISASSEMBLY
1. REMOVE NO. 1 HEADLIGHT BULB
|
(a) Turn the back cover in the direction indicated by the arrow and remove it. |
|
(b) Turn the bulb in the direction indicated by the arrow and remove it. |
2. REMOVE NO. 2 HEADLIGHT BULB
|
(a) Turn the back cover in the direction indicated by the arrow and remove it. |
|
(b) Turn the bulb in the direction indicated by the arrow and remove it. |
3. REMOVE FRONT TURN SIGNAL LIGHT BULB
|
(a) Turn the bulb in the direction indicated by the arrow and remove it. |
4. REMOVE CLEARANCE LIGHT BULB
|
(a) Turn the bulb in the direction indicated by the arrow and remove it. |
5. REMOVE HEADLIGHT LEVELING MOTOR LH
|

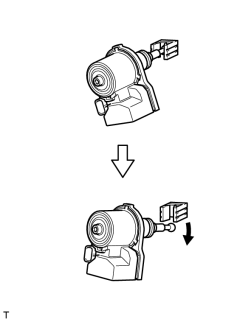

(a) Turn the headlight leveling motor in the direction indicated by the arrow and lightly pull it out. |
|
(b) Lower the tip of the headlight leveling motor and detach it from the reflector to remove it. |
6. REMOVE HEADLIGHT LEVELING MOTOR BASE PACKING
(a) Remove the packing.
|
|
