Title: LIGHTING (EXT): STOP LIGHT SWITCH: INSPECTION (2008 LX570)

INSPECTION

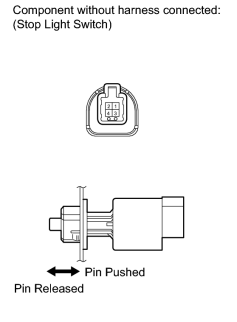

1. INSPECT STOP LIGHT SWITCH

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Switch Condition

Specified Condition

1 - 2

Pin pushed

10 kΩ higher

Pin released

Below 1 Ω

3 - 4

Pin pushed

Below 1 Ω

Pin released

10 kΩ higher

If the result is not as specified, there may be a malfunction on the switch.
