| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Steering | Section: Steering Linkage/Steering Gear | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM0000039T0005X |
| Title: STEERING GEAR / LINKAGE: STEERING LINKAGE: DISASSEMBLY (2008 LX570) | ||
DISASSEMBLY
1. FIX POWER STEERING LINK ASSEMBLY
(a) Using SST, fix the power steering link.
SST: 09612-00012
HINT:
Tape SST before use.
NOTICE:
When using a vise, do not overtighten it.
2. REMOVE STEERING RACK BOOT CLIP LH
(a) Using pliers, remove the steering rack boot clip.
3. REMOVE STEERING RACK BOOT CLIP RH
HINT:
Use the same procedures described for the LH side.
4. REMOVE STEERING RACK BOOT CLAMP LH
(a) Using pliers, remove the boot clamp as shown in the illustration.
NOTICE:
Be careful not to damage the steering rack boot.
5. REMOVE STEERING RACK BOOT CLAMP RH
HINT:
Use the same procedures described for the LH side.
6. REMOVE NO. 1 STEERING RACK BOOT
(a) Remove the steering rack boot LH and RH.
7. REMOVE STEERING RACK END SUB-ASSEMBLY
|
(a) Using a wrench, hold the steering rack (LH side). |
(b) Using SST, remove the steering rack end (LH side) from the power steering rack.
SST: 09922-10010
HINT:

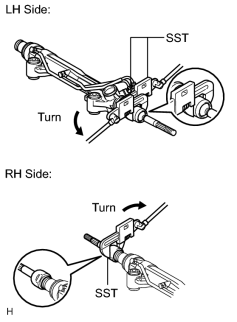

Rotate SST in the direction shown in the illustration.
(c) Using SST, remove the steering rack end (RH side) from the power steering rack.
SST: 09922-10010
HINT:
Rotate SST in the direction shown in the illustration.
NOTICE:
- Do not mistake the direction of SST.
- Make sure to keep the power steering rack fixed in place with SST.
|
|
