| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Engine/Hybrid System | Section: Fuel System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM0000039W6008X |
| Title: 3UR-FE FUEL: FUEL PUMP: DISASSEMBLY (2008 LX570) | ||
DISASSEMBLY
NOTICE:

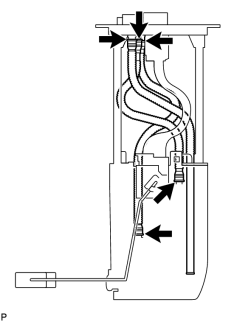

Do not disconnect the hoses indicated in the illustration.
1. REMOVE FUEL SENDER GAUGE ASSEMBLY
2. REMOVE NO. 1 FUEL SUB-TANK
|
(a) Disconnect the fuel pump connector. |
|
(b) Disconnect the jet pump from the sub-tank. |
(c) Using a small screwdriver, detach the claw from the sub-tank.
HINT:
Tape the screwdriver tip before use.
(d) Detach the tube from the 2 clamps on the sub-tank.
|
(e) Using a screwdriver, detach the 3 claws from the claw holes. NOTICE:
Do not damage the fuel sub-tank. HINT:
Tape the screwdriver tip before use. |
|
(f) Using a screwdriver, detach the 3 claws from the claw holes and remove the No. 1 fuel sub-tank. NOTICE:
Do not damage the fuel sub-tank. HINT:
Tape the screwdriver tip before use. |
3. REMOVE FUEL PUMP
|
(a) Using a screwdriver, detach the 5 claws from the claw holes and disconnect the fuel pump from the fuel filter case. HINT:
Tape the screwdriver tip before use. |
|
(b) Disconnect the fuel pump wire harness connector from the fuel pump to remove it. |
|
(c) Remove the O-ring and spacer from the fuel pump. |
4. REMOVE FUEL MAIN VALVE ASSEMBLY
|
(a) Remove the fuel main valve from the fuel filter case. |
(b) Remove the 2 O-rings from the fuel main valve.
5. REMOVE NO. 1 FUEL SUCTION SUPPORT
|
(a) Detach the 2 claws from the claw holes to remove the fuel suction support. |
|
|
