| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Suspension | Section: Suspension Control System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003A00002X |
| Title: SUSPENSION CONTROL: DAMPING FORCE CONTROL ACTUATOR (for Front Side): INSPECTION (2008 LX570) | ||
INSPECTION

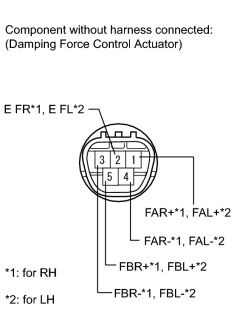

1. INSPECT FRONT SHOCK ABSORBER CONTROL VALVE ASSEMBLY (DAMPING FORCE CONTROL ACTUATOR)
|
(a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the shock absorber control valve assembly. |
2. INSPECT FRONT SUSPENSION CONTROL VALVE ASSEMBLY (FRONT SPRING RATE SWITCHING VALVE)
|
(a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the front suspension control valve assembly. |
|
|
