| Title: SUSPENSION CONTROL: DAMPING FORCE CONTROL ACTUATOR (for Rear Side): INSPECTION (2008 LX570) | ||
INSPECTION

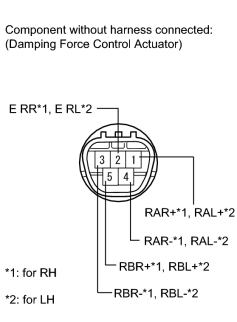

1. INSPECT REAR SHOCK ABSORBER CONTROL VALVE ASSEMBLY (DAMPING FORCE CONTROL ACTUATOR)
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
for RH
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 (RAR+) - 2 (E RR) |
Always |
12.0 to 13.6 Ω |
|
3 (RBR-) - 2 (E RR) |
||
|
4 (RAR-) - 2 (E RR) |
||
|
5 (RBR+) - 2 (E RR) |
for LH
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 (RAL+) - 2 (E RL) |
Always |
12.0 to 13.6 Ω |
|
3 (RBL-) - 2 (E RL) |
||
|
4 (RAL-) - 2 (E RL) |
||
|
5 (RBL+) - 2 (E RL) |
If the result is not as specified, replace the shock absorber control valve assembly.
|
|
