1. INSPECT FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

NOTICE:

Do not drop the height control sensor. If it is dropped, replace it with a new one.

(a) Connect 3 dry batteries of 1.5 V in series.

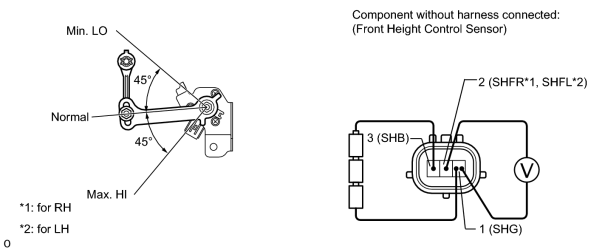

(b) Connect the positive (+) end of the batteries to terminal 3 (SHB) of the height control sensor and the negative (-) end of the batteries to terminal 1 (SHG). While slowly moving the sensor link up and down, measure the voltage between terminal 2 (SHFR*1, SHFL*2) and terminal 1 (SHG).

(1) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

for RH

for LH

NOTICE:

Do not apply a voltage of higher than 6 V.

If the result is not as specified, replace the front height control sensor assembly.
