| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Vehicle Exterior | Section: Exterior Panels/Trim | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003AD1002X |
| Title: EXTERIOR PANELS / TRIM: ROOF CARRIER: DISASSEMBLY (2008 LX570) | ||
DISASSEMBLY
1. REMOVE FRONT ROOF RACK LEG CUSHION LH
(a) Detach the 4 clips and remove the cushion.
2. REMOVE FRONT ROOF RACK LEG CUSHION RH
HINT:
Use the same procedures described for the LH side.
3. REMOVE REAR ROOF RACK LEG CUSHION LH
(a) Detach the 4 clips and remove the cushion.
4. REMOVE REAR ROOF RACK LEG CUSHION RH
HINT:
Use the same procedures described for the LH side.
5. REMOVE NO. 2 ROOF CARRIER SEAL
(a) Remove the 8 No. 2 roof carrier seals.

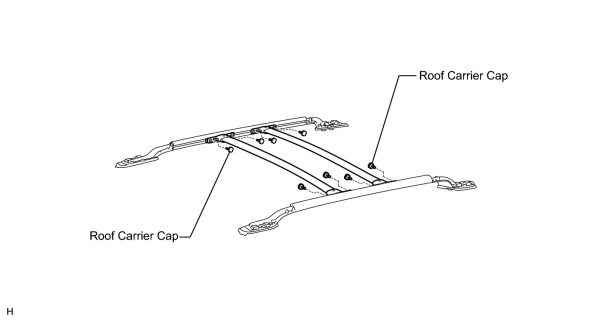

6. REMOVE CENTER ROOF RACK SUPPORT SUB-ASSEMBLY
(a) Remove the 8 roof carrier caps and 2 roof rack supports.
|
|
