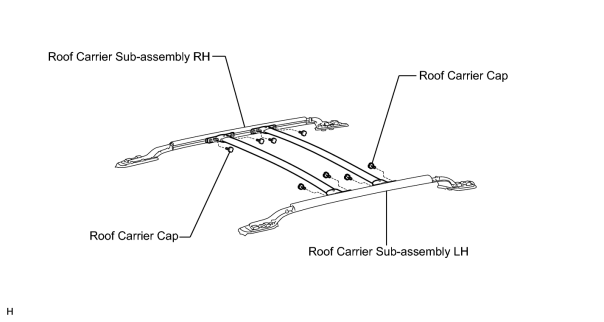

1. INSTALL CENTER ROOF RACK SUPPORT SUB-ASSEMBLY

(a) Install the 2 roof rack supports to the roof carrier sub-assembly LH and RH.

(b) Install the 8 roof carrier caps.

HINT:

Loosely install the roof carrier caps so that the roof rack support position can be adjusted after the roof carrier assembly is installed.

2. INSTALL NO. 2 ROOF CARRIER SEAL

(a) Install 8 new No. 2 roof carrier seals.

3. INSTALL REAR ROOF RACK LEG CUSHION LH

(a) Attach the 4 clips to install the cushion.

4. INSTALL REAR ROOF RACK LEG CUSHION RH

HINT:

Use the same procedures described for the LH side.

5. INSTALL FRONT ROOF RACK LEG CUSHION LH

(a) Attach the 4 clips to install the cushion.

6. INSTALL FRONT ROOF RACK LEG CUSHION RH

HINT:

Use the same procedures described for the LH side.
