Home › Vehicle Interior › Meter/Gauge/Display › METER / GAUGE SYSTEM
Last Modified: 11-27-2007 1.6 D
Service Category: Vehicle Interior Section: Meter/Gauge/Display
Model Year: 2008 Model: LX570 Doc ID: RM000003B25001X
Title: METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: INITIALIZATION (2008 LX570)

INITIALIZATION

1. OIL MAINTENANCE INFORMATION MODE RESET OPERATION

NOTICE:

  • When "Oil Maintenance Reqd" or "Oil Maintenance Reqd Soon" is displayed, change the engine oil and perform this procedure.
  • After the engine oil is changed, perform this procedure so that "Oil Maintenance Reqd" or "Oil Maintenance Reqd Soon" does not display.

HINT:

  • The oil change maintenance system displays "Oil Maintenance Reqd" or "Oil Maintenance Reqd Soon" in the multi-information display to inform the driver that it is time to change the oil based on the distance driven.
  • The ODO/TRIP switch is in the light control rheostat.


(a) Turn the engine switch on (IG), and use the ODO/TRIP switch to change the screen display to TRIP A.

(b) Turn the engine switch off.

(c) While holding in the ODO/TRIP switch, turn the engine switch on (IG).

(d) After a 5 second count, reset will end.

NOTICE:

  • If the engine switch is turned off during the reset operation, reset mode will be canceled.
  • If the ODO/TRIP switch is released during the reset operation, reset mode will be canceled.

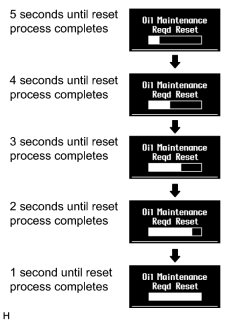

(1) RESET FLOWCHART
