| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Engine/Hybrid System | Section: Starting | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003BIA004X |
| Title: 3UR-FE STARTING: RELAY: ON-VEHICLE INSPECTION (2008 LX570) | ||
ON-VEHICLE INSPECTION
1. INSPECT STARTER RELAY (ST)
|
(a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the relay. |
2. INSPECT STARTER CUT RELAY (ST CUT)
|
|
(a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the relay. |

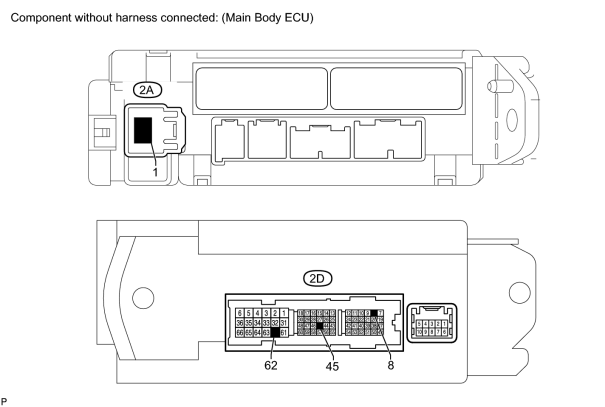

3. INSPECT MAIN BODY ECU (ACC RELAY)
(a) Measure the resistance of the ACC relay circuit.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
2A-1 - 2D-8 |
Battery voltage not applied between 2D-45 and 2D-62 |
10 kΩ or higher |
|
Battery voltage applied between 2D-45 and 2D-62 |
Below 1 Ω |
If the result is not as specified, replace the main body ECU.
|
|
