| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Suspension | Section: Rear Suspension | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003BZI003X |
| Title: REAR SUSPENSION: REAR LATERAL CONTROL ROD: INSTALLATION (2008 LX570) | ||
INSTALLATION
1. TEMPORARILY INSTALL REAR LATERAL CONTROL ROD ASSEMBLY
|

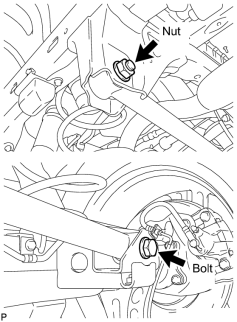

(a) Temporarily install the lateral control rod with the 2 bolts, washer and nut. |
2. STABILIZE SUSPENSION
3. TIGHTEN REAR LATERAL CONTROL ROD ASSEMBLY
(a) Tighten the bolt and nut.
Torque: 150 N·m (1530 kgf·cm, 111 ft·lbf)
NOTICE:
Perform this procedure with all 4 wheels on the ground.
|
|
