| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Vehicle Exterior | Section: Wiper/Washer | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003C2L003X |
| Title: WIPER / WASHER: HEADLIGHT CLEANER SWITCH: INSPECTION (2008 LX570) | ||
INSPECTION

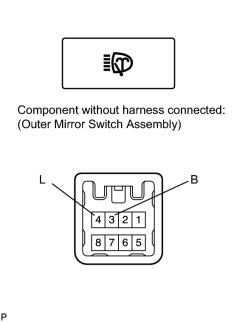

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY
|
(a) Remove the outer mirror switch assembly. |
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
3 (B) - 4 (L) |
Headlight cleaner switch on |
Below 1 Ω |
|
Headlight cleaner switch off |
10 kΩ or higher |
If the result is not as specified, replace the outer mirror switch assembly.
|
|
