INSPECTION

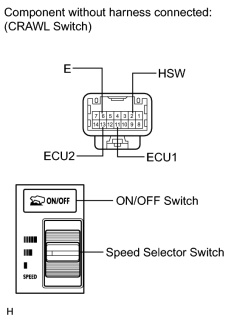

1. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (CRAWL SWITCH)
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
11 (ECU1) - 6 (E) |
Speed selector switch: MID |
10 kΩ or higher |
|
Speed selector switch: HI |
||
|
Speed selector switch: LO |
Below 1 Ω |
|
|
13 (ECU2) - 6 (E) |
Speed selector switch: MID |
10 kΩ or higher |
|
Speed selector switch: HI |
Below 1 Ω |
|
|
Speed selector switch: LO |
||
|
2 (HSW) - 6 (E) |
ON/OFF switch: Pressed |
Below 1 Ω |
|
ON/OFF switch: Not pressed |
10 kΩ or higher |
If the result is not as specified, replace the integration control and panel assembly (CRAWL switch).
|
|
