INSPECTION
1. INSPECT ACCELERATION SENSOR
NOTICE:
Do not drop the acceleration sensor. If it is dropped, replace it with a new one.

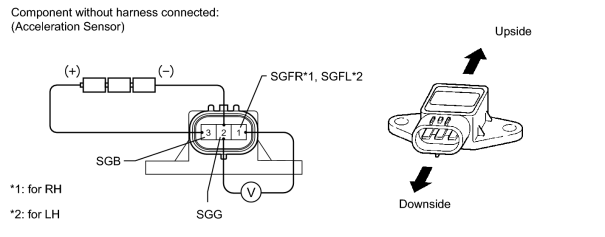

(a) Connect 3 dry batteries of 1.5 V in series.
(b) Connect the positive (+) end of the batteries to terminal 3 (SGB) of the acceleration sensor and the negative (-) end of the batteries to terminal 2 (SGG). Then measure the voltage between terminal 1 (SGFR*1, SGFL*2) and terminal 2 (SGG).
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
for RH
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 (SGFR) - 2 (SGG) |
Sensor is not tilted |
Approx. 2.0 to 2.5 V |
|
Sensor is tilted |
Change between approx. 0.9 to 2.3 V |
for LH
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 (SGFL) - 2 (SGG) |
Sensor is not tilted |
Approx. 2.0 to 2.5 V |
|
Sensor is tilted |
Change between approx. 0.9 to 2.3 V |
NOTICE:
Do not apply a voltage of higher than 6 V.
HINT:
The voltage may differ according to the amount that the sensor is tilted.
If the result is not as specified, replace the acceleration sensor.
|
|
