Cooling Box Magnetic Valve Circuit |
DESCRIPTION
The cooler expansion valve (cooler magnetic valve) is controlled by the air conditioning amplifier assembly (for cool box).

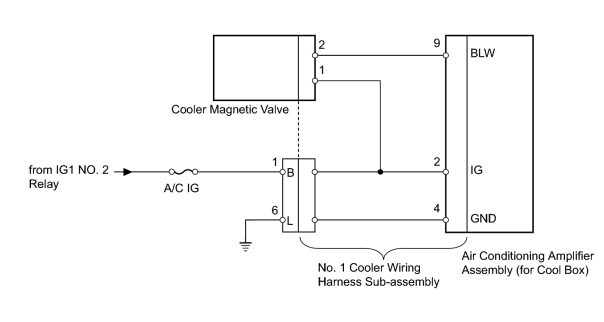

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT FUSE (A/C IG) |
(a) Remove the A/C IG fuse from the cowl side junction block LH.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A/C IG fuse |
Always |
Below 1 Ω |
|
|
2. |
CHECK HARNESS AND CONNECTOR (NO. 1 COOLER WIRING HARNESS - BATTERY) |
|
(a) Disconnect the No. 1 cooler wiring harness sub-assembly connector. |
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
1 (B) - Body ground |
Engine switch off |
Below 1 V |
|
Engine switch on (IG) |
11 to 14 V |
|
|
3. |
CHECK HARNESS AND CONNECTOR (NO. 1 COOLER WIRING HARNESS - BODY GROUND) |
|
(a) Disconnect the No. 1 cooler wiring harness sub-assembly connector. |
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
6 (L) - Body ground |
Always |
Below 1 Ω |
|
|
4. |
CHECK NO. 1 COOLER WIRING HARNESS SUB-ASSEMBLY (OPERATION) |
(a) Replace the No. 1 cooler wiring harness sub-assembly with a normal one and check that the condition returns to normal.
OK:
Same problem does not occur.
|
|
5. |
CHECK COOLER MAGNETIC VALVE (OPERATION) |
(a) Replace the cooler magnetic valve
.
HINT:
Since the cooler magnetic valve cannot be inspected while it is removed from the vehicle, replace the cooler magnetic valve with a normal one and check that the condition returns to normal.
OK:
Same problem does not occur.
|
|
|
