Last Modified: 11-27-2007 |
1.6 J |
|
Service Category: Vehicle Interior |
Section: Heating/Air Conditioning |
|
Model Year: 2008 |
Model: LX570 |
Doc ID: RM000003CPN003X |
|
Title: HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: DESCRIPTION (2008 LX570) |
|
Cooling Box Blower Motor Circuit
|
DESCRIPTION
The cooler blower motor is operated by signals from the air conditioning amplifier assembly (for cool box).

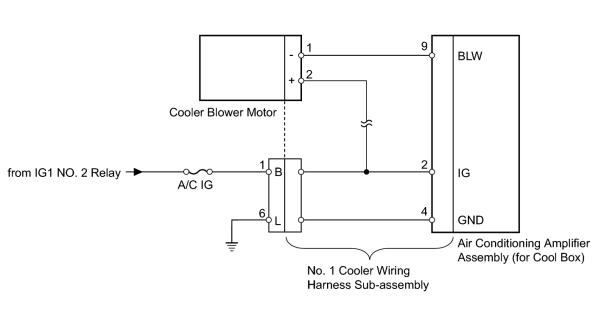

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
(a) Remove the A/C IG fuse from the cowl side junction block LH.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
A/C IG fuse
|
Always
|
Below 1 Ω
|
| OK |
|
|
|
2.
|
CHECK HARNESS AND CONNECTOR (NO. 1 COOLER WIRING HARNESS - BATTERY)
|
|
(a) Disconnect the No. 1 cooler wiring harness sub-assembly connector.
|
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection
|
Switch Condition
|
Specified Condition
|
|
1 (B) - Body ground
|
Engine switch off
|
Below 1 V
|
|
Engine switch on (IG)
|
11 to 14 V
|
| OK |
|
|
|
3.
|
CHECK HARNESS AND CONNECTOR (NO. 1 COOLER WIRING HARNESS - BODY GROUND)
|
|
(a) Disconnect the No. 1 cooler wiring harness sub-assembly connector.
|
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
6 (L) - Body ground
|
Always
|
Below 1 Ω
|
| OK |
|
|
|
4.
|
CHECK NO. 1 COOLER WIRING HARNESS SUB-ASSEMBLY (OPERATION)
|
(a) Replace the No. 1 cooler wiring harness sub-assembly with a normal one and check that the condition returns to normal.
OK:
Same problem does not occur.
| OK |
|
|
|
5.
|
INSPECT COOLER BLOWER MOTOR
|
|
(a) Remove the cooler blower motor
.
|
(b) Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 1, then check that the motor operates smoothly.
OK:
Cooler blower motor operates smoothly.
| OK |
|
|
|
