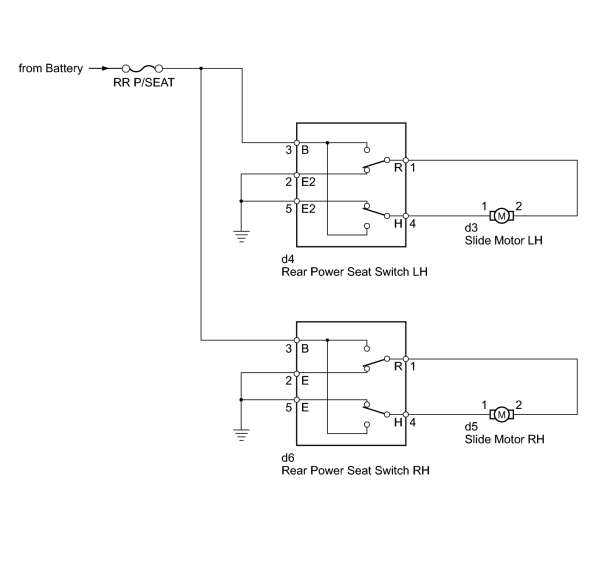

SEAT: REAR POWER SEAT CONTROL SYSTEM (for Rear No. 1 Seat): SYSTEM DIAGRAM (2008 LX570)

Home › Vehicle Interior › Seat › REAR POWER SEAT CONTROL SYSTEM (for Rear No. 1 Seat)

Last Modified: 11-27-2007		1.6 U
Service Category: Vehicle Interior	Section: Seat
Model Year: 2008	Model: LX570	Doc ID: RM000003D4I001X
Title: SEAT: REAR POWER SEAT CONTROL SYSTEM (for Rear No. 1 Seat): SYSTEM DIAGRAM (2008 LX570)
