| Title: PARK ASSIST / MONITORING: CLEARANCE SONAR MAIN SWITCH: INSPECTION (2008 LX570) | ||
INSPECTION

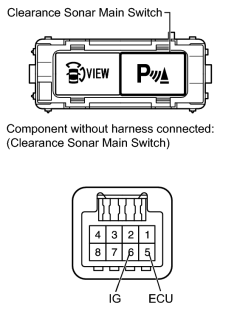

1. INSPECT CLEARANCE SONAR MAIN SWITCH
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
5 (ECU) - 6 (IG) |
Clearance sonar main switch on |
Below 1 Ω |
|
5 (ECU) - 6 (IG) |
Clearance sonar main switch off |
10 kΩ or higher |
If the result is not as specified, replace the switch.
|
|
