| Service Category: Audio/Visual/Telematics | Section: Park Assist/Monitoring | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003EB5000X |
| Title: PARK ASSIST / MONITORING: WIDE VIEW FRONT MONITOR SYSTEM: SYSTEM DIAGRAM (2008 LX570) | ||

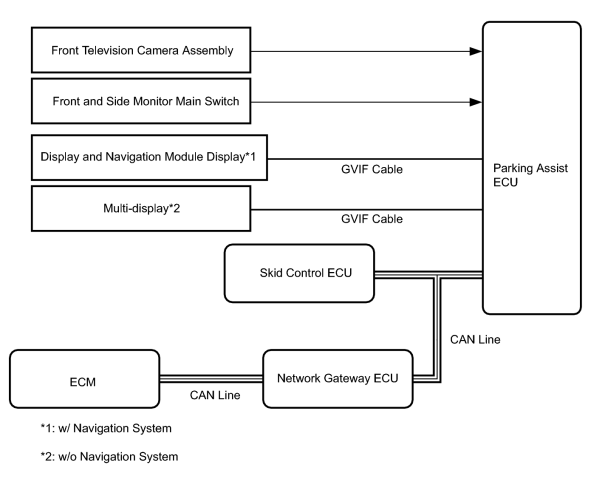

SYSTEM DIAGRAM
Communication Table
|
Sender ECU |
Receiver ECU |
Signal |
Line |
|---|---|---|---|
|
Skid Control ECU |
Parking Assist ECU |
Vehicle speed signal |
CAN |
|
ECM |
Parking Assist ECU |
Shift position signal |
CAN |
|
|
