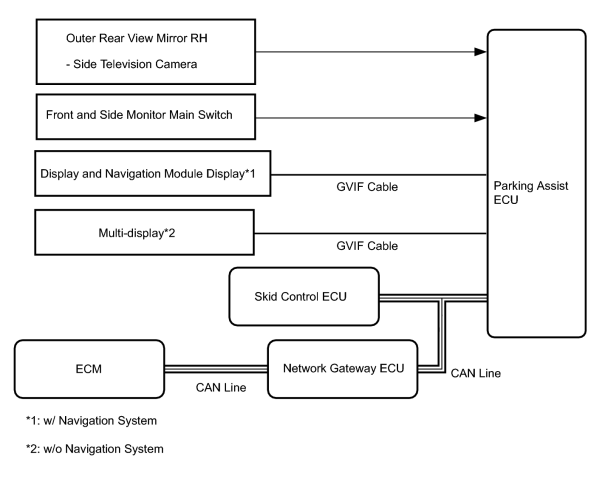

SYSTEM DIAGRAM
Communication Table
|
Sender ECU |
Receiver ECU |
Signal |
Line |
|---|---|---|---|
|
Skid Control ECU |
Parking Assist ECU |
Vehicle speed signal |
CAN |
|
ECM |
Parking Assist ECU |
Shift position signal |
CAN |
|
|
