Title: DOOR / HATCH: POWER BACK DOOR SYSTEM: SYSTEM DIAGRAM (2008 LX570)

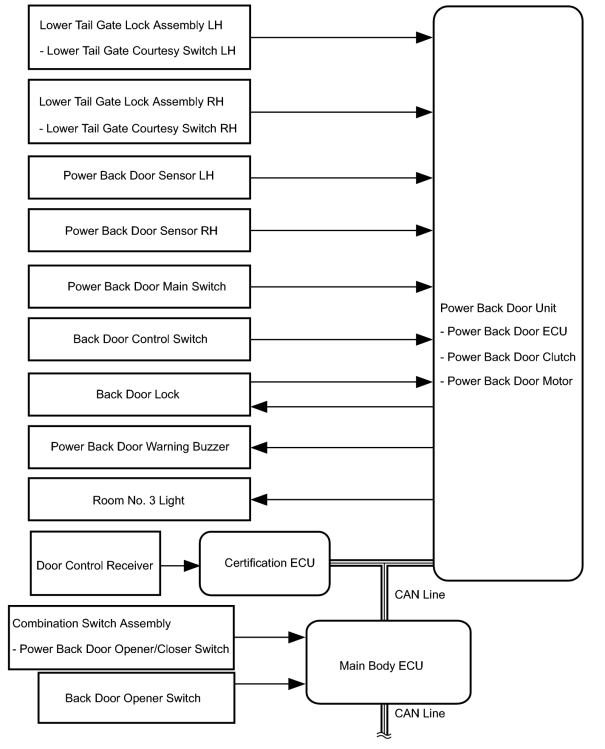

SYSTEM DIAGRAM





Communication Table

Sender ECU

Receiver ECU

Signal

Line

Combination Meter

Power Back Door ECU

Vehicle speed signal

CAN

ECM

Power Back Door ECU

Shift position signal

CAN

Certification ECU

Power Back Door ECU

Transmitter switch signal

CAN

Power Back Door ECU

Main Body ECU

Hazard warning light signal

CAN

Main Body ECU

Power Back Door ECU
  • Power back door opener/closer switch signal
  • Back door opener switch signal

CAN
