TERMINALS OF ECU

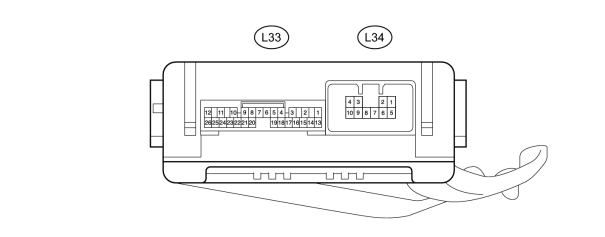

1. CHECK NO. 2 MAIN BODY ECU



(a) Disconnect the L33 and L34 ECU connectors.

(b) Measure the voltage and resistance according to the value(s) in the table below.

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

L33-14 (BECU) - Body ground

R - Body ground

BECU power supply

Always

11 to 14 V

L33-13 (SIG) - Body ground

G - Body ground

SIG power supply

Engine switch on (IG)

11 to 14 V

L33-13 (SIG) - Body ground

G - Body ground

SIG power supply

Engine switch off

Below 1 V

L34-5 (B) - Body ground

B - Body ground

Lower tail gate lock motor RH power supply

Always

11 to 14 V

L34-6 (B) - Body ground

W - Body ground

Lower tail gate lock motor LH power supply

Always

11 to 14 V

L33-7 (GND) - Body ground

W-B - Body ground

Body ground

Always

Below 1 Ω

L34-7 (GND) - Body ground

W-B - Body ground

Body ground

Always

Below 1 Ω

L33-19 (BDSU) - Body ground

V - Body ground

Back door remote control signal circuit

Back door remote control pulled (on)

Below 1 Ω

L33-19 (BDSU) - Body ground

V - Body ground

Back door remote control signal circuit

Back door remote control free (off)

10 kΩ or higher

If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the L33 and L34 ECU connectors.

(d) Measure the voltage according to the value(s) in the table below.

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

L34-3 (DC+) - L34-7 (GND)

R - W-B

Lower tail gate lock motor LH circuit

Lower tail gate lock motor LH operating (close)

11 to 14 V

L34-3 (DC+) - L34-7 (GND)

R - W-B

Lower tail gate lock motor LH circuit

Lower tail gate lock motor LH stopped

Below 1 V

L34-8 (DC-) - L34-7 (GND)

B - W-B

Lower tail gate lock motor LH circuit

Lower tail gate lock motor LH operating (open)

11 to 14 V

L34-8 (DC-) - L34-7 (GND)

B - W-B

Lower tail gate lock motor LH circuit

Lower tail gate lock motor LH stopped

Below 1 V

L34-2 (DC+) - L34-7 (GND)

G - W-B

Lower tail gate lock motor RH circuit

Lower tail gate lock motor RH operating (close)

11 to 14 V

L34-2 (DC+) - L34-7 (GND)

G - W-B

Lower tail gate lock motor RH circuit

Lower tail gate lock motor RH stopped

Below 1 V

L34-1 (DC-) - L34-7 (GND)

W - W-B

Lower tail gate lock motor RH circuit

Lower tail gate lock motor RH operating (open)

11 to 14 V

L34-1 (DC-) - L34-7 (GND)

W - W-B

Lower tail gate lock motor RH circuit

Lower tail gate lock motor RH stopped

Below 1 V

L34-9 (HAF) - L34-7 (GND)

GR - W-B

Half-latch switch LH signal circuit

Lower tail gate open

Below 1 V

L34-9 (HAF) - L34-7 (GND)

GR - W-B

Half-latch switch LH signal circuit

Lower tail gate closed

Pulse generation

(see waveform 1)

L33-8 (HAF) - L34-7 (GND)

B - W-B

Half-latch switch RH signal circuit

Lower tail gate open

Below 1 V

L33-8 (HAF) - L34-7 (GND)

B - W-B

Half-latch switch RH signal circuit

Lower tail gate closed

Pulse generation

(see waveform 1)

L34-4 (FUL) - L34-7 (GND)

G - W-B

Lower tail gate courtesy switch LH signal circuit

Lower tail gate open

Below 1 V

L34-4 (FUL) - L34-7 (GND)

G - W-B

Lower tail gate courtesy switch LH signal circuit

Lower tail gate closed

Pulse generation

(see waveform 1)

L33-22 (FUL) - L34-7 (GND)

Y - W-B

Lower tail gate courtesy switch RH signal circuit

Lower tail gate open

Below 1 V

L33-22 (FUL) - L34-7 (GND)

Y - W-B

Lower tail gate courtesy switch RH signal circuit

Lower tail gate closed

Pulse generation

(see waveform 1)

L34-10 (LMT) - L34-7 (GND)

Y - W-B

Close position switch LH signal circuit

Lower tail gate closed

Below 1 V

L33-10 (LMT) - L34-7 (GND)

Y - W-B

Close position switch LH signal circuit

Lower tail gate open

Pulse generation

(see waveform 2)

L33-17 (LMT) - L34-7 (GND)

L - W-B

Close position switch RH signal circuit

Lower tail gate closed

Below 1 V

L33-17 (LMT) - L34-7 (GND)

L - W-B

Close position switch RH signal circuit

Lower tail gate open

Pulse generation

(see waveform 2)

L33-15 (POL) - L34-7 (GND)

L - W-B

Pawl switch LH signal circuit

Lower tail gate lock motor LH is operating

Below 1 V

L33-15 (POL) - L34-7 (GND)

L - W-B

Pawl switch LH signal circuit

Lower tail gate open

Pulse generation

(see waveform 2)

L33-16 (POL) - L34-7 (GND)

R - W-B

Pawl switch RH signal circuit

Lower tail gate lock motor LH is operating

Below 1 V

L33-16 (POL) - L34-7 (GND)

R - W-B

Pawl switch RH signal circuit

Lower tail gate open

Pulse generation

(see waveform 2)

L33-19 (BDSU) - L34-7 (GND)

V - W-B

Back door remote control signal circuit

Back door remote control pulled (on)

Below 1 V

L33-19 (BDSU) - L34-7 (GND)

V - W-B

Back door remote control signal circuit

Back door remote control free (off)

Pulse generation

(see waveform 3)

If the result is not as specified, the ECU may have a malfunction.


(e) Using an oscilloscope, check waveform 1.

Waveform 1 (Reference)

Item

Content

Terminal (Symbol)

  • L34-9 (HAF) - L34-7 (GND)
  • L33-8 (HAF) - L34-7 (GND)
  • L34-4 (FUL) - L34-7 (GND)
  • L33-22 (FUL) - L34-7 (GND)

Tool Setting

5 V/DIV., 5 ms/DIV

Condition

Lower tail gate closed


(f) Using an oscilloscope, check waveform 2.

Waveform 2 (Reference)

Item

Content

Terminal (Symbol)

  • L34-10 (LMT) - L34-7 (GND)
  • L33-17 (LMT) - L34-7 (GND)
  • L33-15 (POL) - L34-7 (GND)
  • L33-16 (POL) - L34-7 (GND)

Tool Setting

5 V/DIV., 5 ms/DIV

Condition

Lower tail gate open


(g) Using an oscilloscope, check waveform 3.

Waveform 3 (Reference)

Item

Content

Terminal (Symbol)

L33-19 (BDSU) - L34-7 (GND)

Tool Setting

5 V/DIV., 5 ms/DIV

Condition

Back door remote control free (off)
