| Title: DOOR / HATCH: TAIL GATE CLOSER SYSTEM: SYSTEM DIAGRAM (2008 LX570) | ||

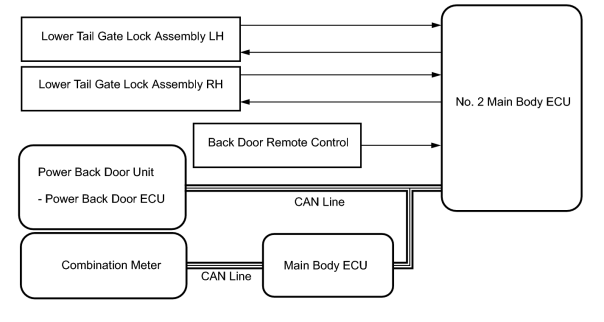

SYSTEM DIAGRAM
Communication Table
|
Sender ECU |
Receiver ECU |
Signal |
Line |
|---|---|---|---|
|
Power Back Door ECU |
No. 2 Main Body ECU |
Back door information signal |
CAN |
|
Combination Meter |
No. 2 Main Body ECU |
Vehicle speed signal |
CAN |
|
|
