INSPECTION
1. INSPECT SEAT VARIABLE CUSHION SWITCH
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|

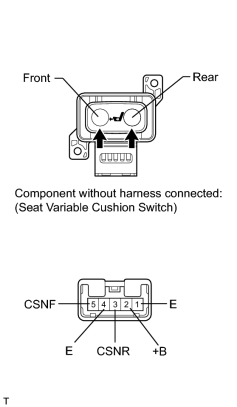

Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
2 (+B) - 5 (CSNF) |
Front |
Below 1 Ω |
|
3 (CSNR) - 4 (E) |
||
|
3 (CSNR) - 4 (E) |
Off |
|
|
1 (E) - 5 (CSNF) |
||
|
2 (+B) - 3 (CSNR) |
Rear |
|
|
1 (E) - 5 (CSNF) |
If the result is not as specified, replace the seat variable cushion switch.
|
|
