Home › Vehicle Interior › Seat › REAR POWER SEAT CONTROL SYSTEM (for Rear No. 2 Seat with Automatic Folding-up Function)
Last Modified: 11-27-2007 1.6 D
Service Category: Vehicle Interior Section: Seat
Model Year: 2008 Model: LX570 Doc ID: RM000003FZT000X
Title: SEAT: REAR POWER SEAT CONTROL SYSTEM (for Rear No. 2 Seat with Automatic Folding-up Function): OPERATION CHECK (2008 LX570)

OPERATION CHECK

1. CHECK POWER FOLDING-UP FUNCTION

CAUTION:

  • Make sure the surrounding area is safe and then perform each operation.
  • Open the back door and perform each operation from the rear of the vehicle.

HINT:

The power folding-up function operates when the following conditions are met:

  • The back door is open.
  • The engine switch is off, or on (ACC) or on (IG) with the shift lever in P.

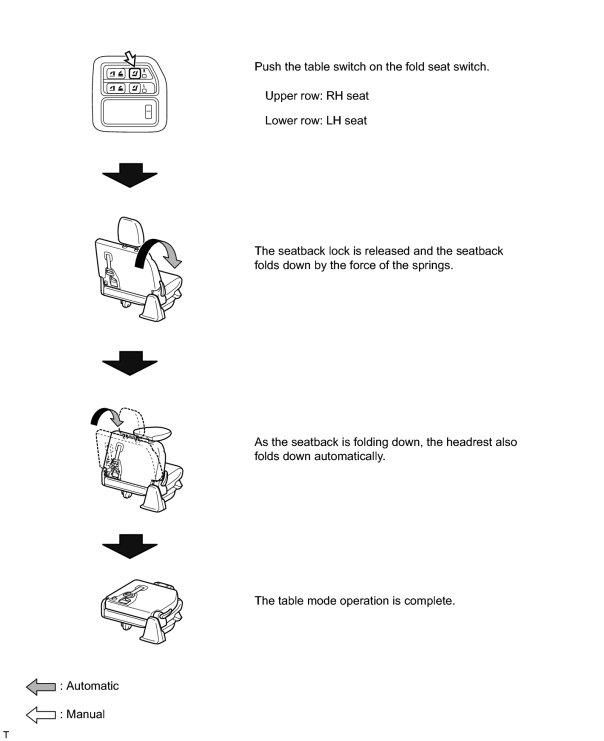

(a) Table mode operation (from the original position to the table position)

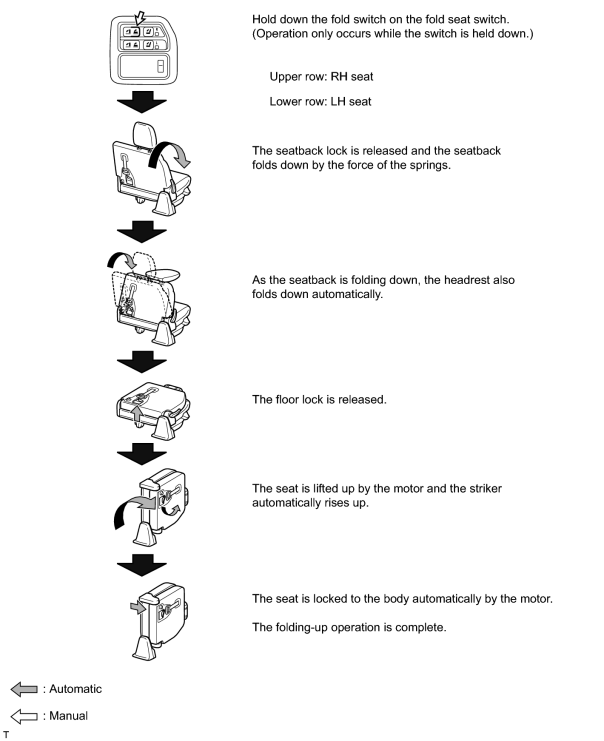

(b) Folding-up operation (from the original position to the stowed position)

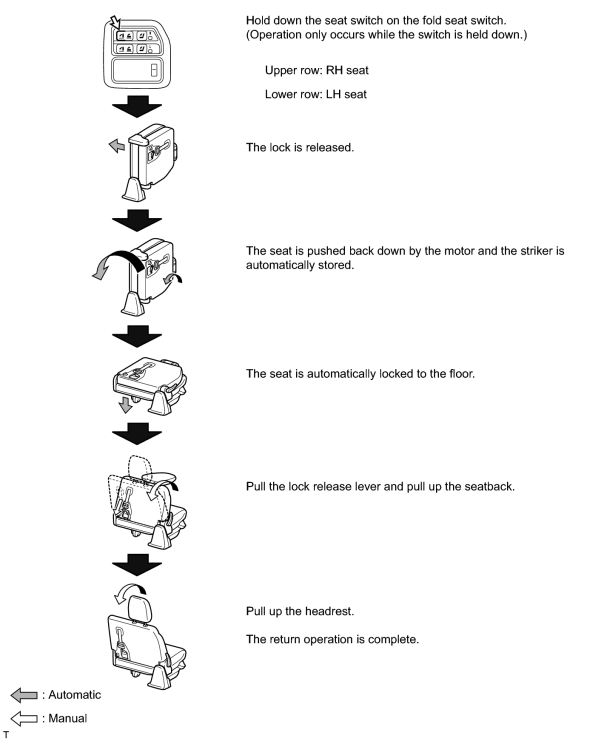

(c) Return operation (from the stowed position to the original position)



2. CHECK INDICATOR FUNCTION

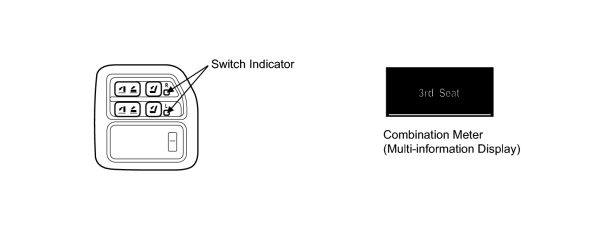

(a) Indicator and buzzer operation conditions.

Warning Type

Buzzer (Sounds for 10 seconds)

Switch Indicator Blinking Pattern

Multi-information Display (in Combination Meter) turns on*

Illuminates

Blinking 1

Blinking 2

Blinking 3

The operation stops during operation due to an operation condition not being met (no fold seat switch operation, shift lever not in P when engine switch is on (IG), etc.).

○

○

-

-

-

○

The folding-up motor stops due to a malfunction being detected during operation (excessive current, abnormal pulse signal, etc.).

○

-

○

-

-

○

The seatback does not reach the table position from the original position after pressing and holding the fold switch for 10 seconds.

○

-

○

-

-

○

The closer motor stops due to a malfunction being detected during operation (excessive current, position cannot be determined, etc.).

○

-

-

-

○

○

The seat is stopped between normal positions when operation conditions have been met.

-

○

-

-

-

○

An operation condition is not met when the fold switch is pressed (shift lever is not in P when the engine switch is on (IG), etc.).

-

-

○

-

-

-

An operation condition is not met when the seat switch is pressed (shift lever is not in P when the engine switch is on (IG), etc.).

-

-

○

-

-

-

An operation condition is not met when the table switch is pressed (shift lever is not in P when the engine switch is on (IG), etc.).

-

-

-

○

-

-

HINT:

*: An on signal is output but the display only turns on when the engine switch is on (IG)

(1) Indicator blinking pattern

HINT:

Blinking 1: Turns on and off once every 0.8 +/-0.08 seconds (while operation conditions are met)

HINT:

Blinking 2: Turns on and off once every 0.8 +/-0.08 seconds (3 times)

HINT:

Blinking 3: Turns on and off once every 2.4 +/-0.24 seconds (while operation conditions are met)
