| Last Modified: 11-27-2007 | 1.6 D | |
| Service Category: Vehicle Interior | Section: Seat | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003FZW000X |
| Title: SEAT: REAR POWER SEAT CONTROL SYSTEM (for Rear No. 2 Seat with Manual Folding-up Function): OPERATION CHECK (2008 LX570) | ||
OPERATION CHECK
1. CHECK POWER FOLDING-UP FUNCTION
CAUTION:
- Make sure the surrounding area is safe and then perform each operation.
- Open the back door and perform each operation from the rear of the vehicle.
HINT:
The power folding-up function operates when the following conditions are met:
- The back door is open.
- The engine switch is off, or on (ACC) or on (IG) with the shift lever in P.

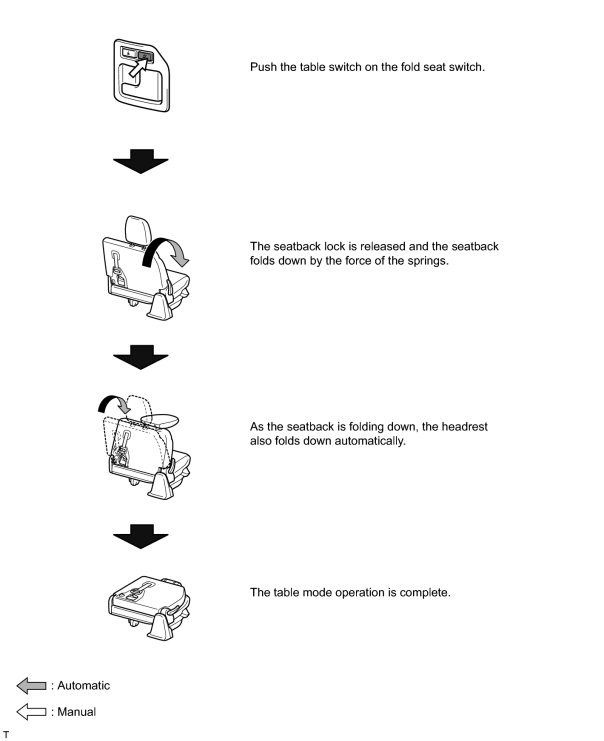

(a) Table mode operation (from the original position to the table position)

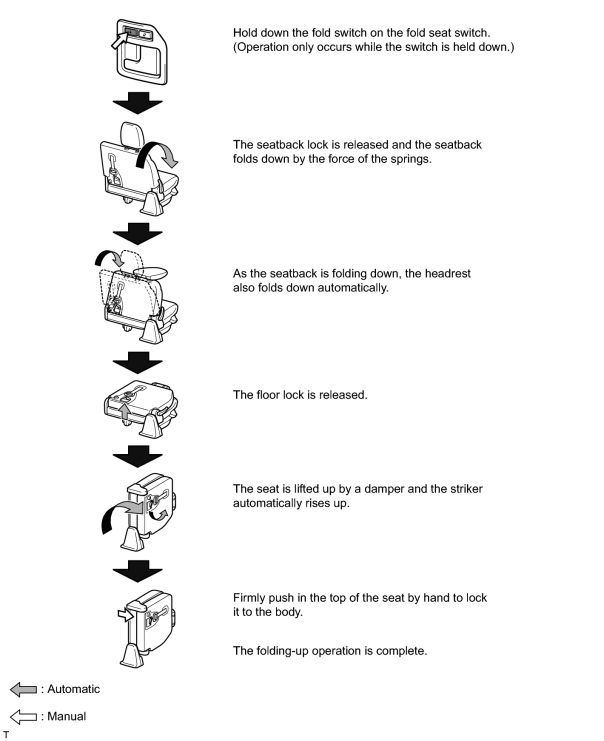

(b) Folding-up operation (from the original position to the stowed position)

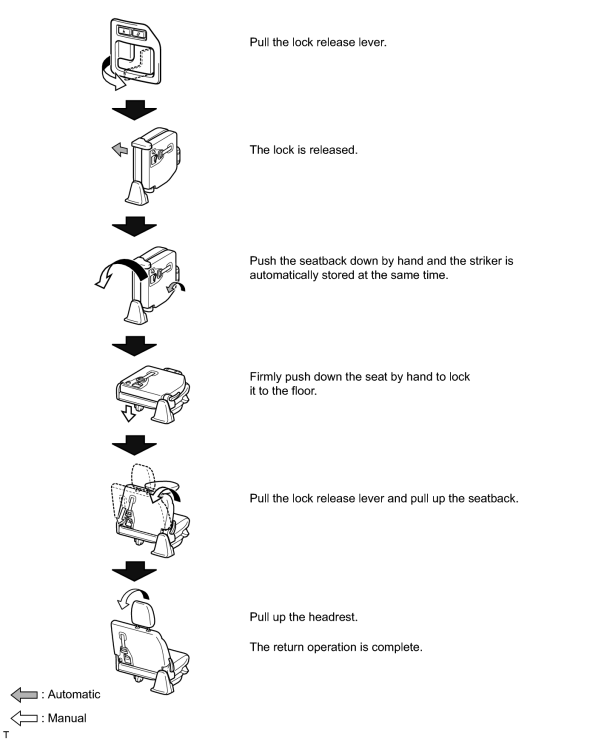

(c) Return operation (from the stowed position to the original position)
|
|
