- Air conditioning amplifier
- Seat climate control ECU LH
- Seat climate control ECU RH
- Harness or connector
| Last Modified: 11-27-2007 | 1.6 C | |
| Service Category: Power Source/Network | Section: Networking | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003G6Q000X |
| Title: NETWORKING: LIN COMMUNICATION SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
B1478 |
Climate Control Seat ECU Communication Error |
DESCRIPTION
This DTC is stored when LIN communication between the air conditioning amplifier and seat climate control ECUs stops for 10 seconds or more.
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
B1478 |
No communication between the air conditioning amplifier and seat climate control ECUs for 10 seconds or more. |
|

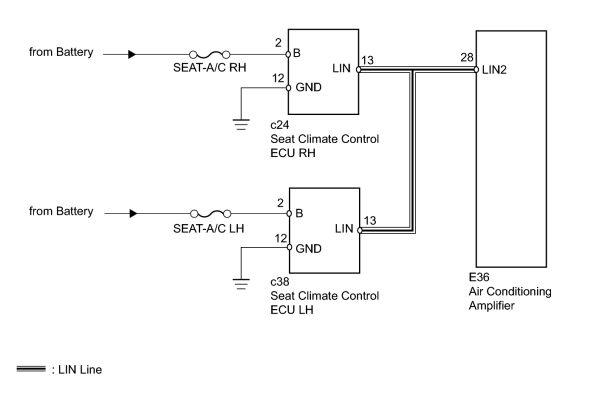

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
When using the Techstream with the engine switch off to troubleshoot:
Connect the Techstream to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the Techstream and vehicle begins.
PROCEDURE
|
1. |
CLEAR DTC |
(a) Clear the DTC
.
|
|
2. |
CHECK FOR DTC |
(a) Recheck for DTCs
.
Result
|
Result |
Proceed to |
|---|---|
|
DTC B1478 is output |
A |
|
DTC B1478 is not output |
B |
|
|
3. |

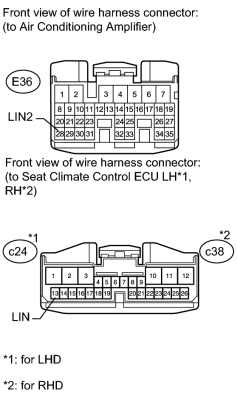

CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - SEAT CLIMATE CONTROL ECU) |
|
(a) Disconnect the E36 amplifier connector. |
(b) Disconnect the c24 and c38 ECU connectors.
(c) Measure the resistance and voltage according to the value(s) in the tables below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
E36-28 (LIN2) - c24-13 (LIN) |
Always |
Below 1 Ω |
|
E36-28 (LIN2) - c38-13 (LIN) |
Always |
Below 1 Ω |
|
E36-28 (LIN2) - Body ground |
Always |
10 kΩ or higher |
Standard Voltage:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
E36-28 (LIN2) - Body ground |
Always |
Below 1 V |
|
|
4. |
CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - BATTERY AND BODY GROUND) |
|
(a) Disconnect the c24 and c38 ECU connectors. |
(b) Measure the resistance and voltage according to the value(s) in the tables below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
c24-12 (GND) - Body ground |
Always |
Below 1 Ω |
|
c38-12 (GND) - Body ground |
Always |
Below 1 Ω |
Standard Voltage:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
c24-2 (B) - Body ground |
Always |
11 to 14 V |
|
c38-2 (B) - Body ground |
Always |
11 to 14 V |
|
|
5. |
CHECK SEAT CLIMATE CONTROL ECU LH |
(a) Temporarily replace the seat climate control ECU LH with a new or normally functioning one
.
(b) Check that the driver side seat climate control function is normal.
OK:
Driver side seat climate control function is normal.
|
|
6. |
CHECK SEAT CLIMATE CONTROL ECU RH |
(a) Temporarily replace the seat climate control ECU RH with a new or normally functioning one
.
(b) Check that the driver side seat climate control function is normal.
OK:
Front passenger side seat climate control function is normal.
|
|
|
