| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Vehicle Exterior | Section: Door/Hatch | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003G8L000X |
| Title: DOOR / HATCH: POWER BACK DOOR TOUCH SENSOR: INSPECTION (2008 LX570) | ||
INSPECTION

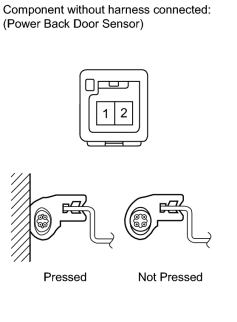

1. INSPECT POWER BACK DOOR SENSOR ASSEMBLY
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 - 2 |
Not pressed |
Approximately 1 kΩ |
|
1 - 2 |
Pressed |
Below 100 Ω |
If the result is not as specified, replace the power back door sensor assembly.
|
|
