| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Vehicle Exterior | Section: Door/Hatch | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003G8W000X |
| Title: DOOR / HATCH: POWER BACK DOOR CLOSER SWITCH: INSPECTION (2008 LX570) | ||
INSPECTION

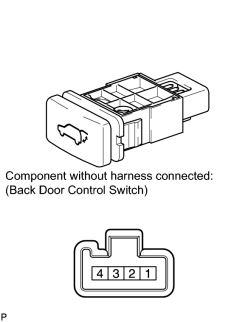

1. INSPECT BACK DOOR CONTROL SWITCH
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
3 - 4 |
Pushed (on) |
Below 1 Ω |
|
3 - 4 |
Not pushed (off) |
10 kΩ or higher |
If the result is not as specified, replace the back door control switch.
|
|
