INSPECTION

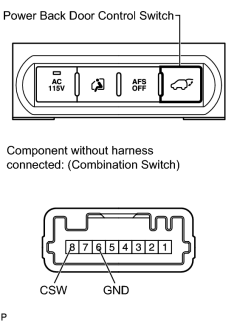

1. INSPECT COMBINATION SWITCH ASSEMBLY (POWER BACK DOOR CONTROL SWITCH)
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
8 (CSW) - 6 (E) |
Power back door control switch is pushed (on) |
Below 1 Ω |
|
8 (CSW) - 6 (E) |
Power back door control switch is not pushed (off) |
10 kΩ or higher |
If the result is not as specified, replace the combination switch assembly.
|
|
