| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Vehicle Interior | Section: Seat | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003GEZ000X |
| Title: SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): INSPECTION (2008 LX570) | ||
INSPECTION
1. INSPECT REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY
(a) Apply battery voltage to the lock control lever and check the operation of the lever.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → Terminal 2 (+) Battery negative (-) → Terminal 1 (-) |
Rotates counterclockwise |
NOTICE:
To prevent damage to the unit, do not reverse the connection.
If the result is not as specified, replace the rear seat lock control lever sub-assembly.

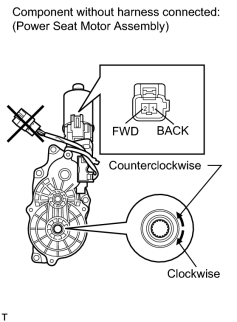

2. INSPECT POWER SEAT MOTOR ASSEMBLY

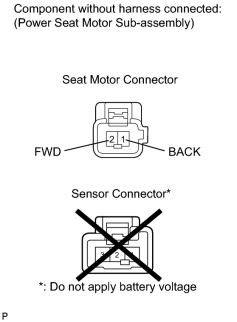

CAUTION:
Do not apply battery voltage to the sensor connector.
(a) Apply battery voltage to the power seat motor and check the operation of the motor.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → Terminal 2 (FWD) Battery negative (-) → Terminal 1 (BACK) |
Rotates counterclockwise |
|
Battery positive (+) → Terminal 1 (BACK) Battery negative (-) → Terminal 2 (FWD) |
Rotates clockwise |
If the result is not as specified, replace the power seat motor assembly.

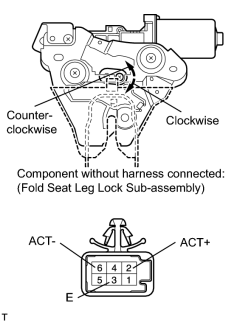

3. INSPECT FOLD SEAT LEG LOCK SUB-ASSEMBLY
(a) Apply battery voltage to the lock motor and check the operation of the motor.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → Terminal 2 (ACT+) Battery negative (-) → Terminal 3 (E) |
Rotates clockwise |
|
Battery positive (+) → Terminal 6 (ACT-) Battery negative (-) → Terminal 3 (E) |
Rotates counterclockwise |
If the result is not as specified, replace the fold seat leg lock sub-assembly.

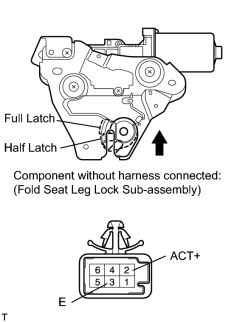

(b) Set the fold seat leg lock sub-assembly to half latch.
|
(c) Apply battery voltage to the lock motor connector and check the closer operation. OK:
If the result is not as specified, replace the fold seat leg lock sub-assembly. |
|
|
