| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Vehicle Interior | Section: Seat | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003GEZ002X |
| Title: SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Manual Folding-up Function): INSPECTION (2008 LX570) | ||
INSPECTION
1. INSPECT REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY

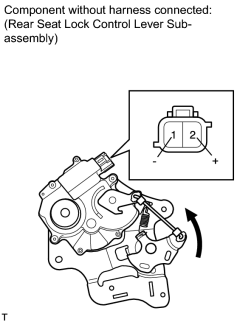

(a) Apply battery voltage to the lock control lever connector and check the operation of the lever.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → Terminal 2 (+) Battery negative (-) → Terminal 1 (-) |
Rotates counterclockwise |
NOTICE:
To prevent damage to the unit, do not reverse the connection.
If the result is not as specified, replace the rear seat lock control lever sub-assembly.
|
|
