Title: DOOR / HATCH: TAIL GATE: INSPECTION (2008 LX570)

INSPECTION

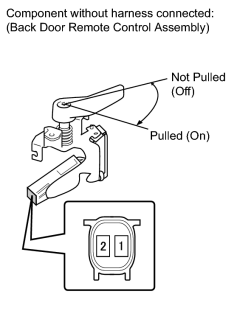

1. INSPECT BACK DOOR REMOTE CONTROL ASSEMBLY



(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Switch Condition

Specified Condition

1 - 2

Back door remote control is pulled (On)

Below 1 Ω

1 - 2

Back door remote control is not pulled (Off)

10 kΩ or higher

If the result is not as specified, replace the back door remote control assembly.

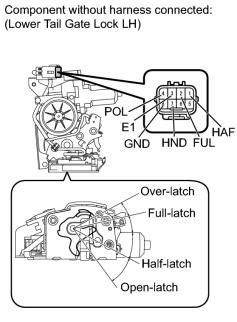

2. INSPECT LOWER TAIL GATE LOCK ASSEMBLY LH

(a) Operation check:

(1) Set the lower tail gate lock LH to the full-latch position.

(2) Apply battery voltage and check operation of the lower tail gate lock motor LH.

OK:

Measurement Condition

Specified Condition

Battery positive (+) → Terminal 6 (ACT+)

Battery negative (-) → Terminal 5 (ACT-)

Latch turns to open-latch position

If the result is not as specified, replace the lower tail gate lock assembly LH.

(3) Set the lower tail gate lock LH to the half-latch position.

(4) Apply battery voltage and check operation of the lower tail gate lock motor LH.

OK:

Measurement Condition

Specified Condition

Battery positive (+) → Terminal 5 (ACT+)

Battery negative (-) → Terminal 6 (ACT-)

Latch turns to over-latch position

If the result is not as specified, replace the lower tail gate lock assembly LH.


(b) Resistance check:

(1) Measure the resistance according of the value(s) in the table below.

Standard Resistance:

Close Position Switch

Tester Connection

Condition

Specified Condition

7 (HND) - 8 (GND)

Over-latch

Below 1 Ω

7 (HND) - 8 (GND)

Full-latch

10 kΩ or higher

7 (HND) - 8 (GND)

Half-latch

10 kΩ or higher

7 (HND) - 8 (GND)

Open-latch

10 kΩ or higher

If the result is not as specified, replace the lower tail gate lock assembly LH.

Lower Tail Gate Courtesy Switch:

Tester Connection

Condition

Specified Condition

2 (FUL) - 3 (E1)

Over-latch

10 kΩ or higher

2 (FUL) - 3 (E1)

Full-latch

10 kΩ or higher

2 (FUL) - 3 (E1)

Half-latch

Below 1 Ω

2 (FUL) - 3 (E1)

Open-latch

Below 1 Ω

If the result is not as specified, replace the lower tail gate lock assembly LH.

Half-latch Switch:

Tester Connection

Condition

Specified Condition

1 (HAF) - 3 (E1)

Over-latch

10 kΩ or higher

1 (HAF) - 3 (E1)

Full-latch

Below 1 Ω

1 (HAF) - 3 (E1)

Half-latch

10 kΩ or higher

1 (HAF) - 3 (E1)

Open-latch

Below 1 Ω

If the result is not as specified, replace the lower tail gate lock assembly LH.

Pawl Switch:

Tester Connection

Condition

Specified Condition

4 (POL) - 3 (E1)

Over-latch

10 kΩ or higher

4 (POL) - 3 (E1)

Full-latch

Below 1 Ω

4 (POL) - 3 (E1)

Half-latch

Below 1 Ω

4 (POL) - 3 (E1)

Open-latch

10 kΩ or higher

If the result is not as specified, replace the lower tail gate lock assembly LH.

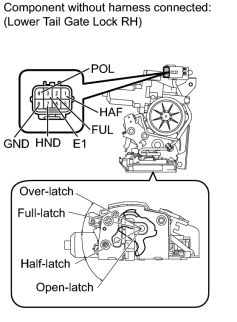

3. INSPECT LOWER TAIL GATE LOCK ASSEMBLY RH

(a) Operation check:

(1) Set the lower tail gate lock RH to the full-latch position.

(2) Apply battery voltage and check operation of the lower tail gate lock motor RH.

OK:

Measurement Condition

Specified Condition

Battery positive (+) → Terminal 6 (ACT+)

Battery negative (-) → Terminal 5 (ACT-)

Latch turns to open-latch position

If the result is not as specified, replace the lower tail gate lock assembly RH.

(3) Set the lower tail gate lock RH to the half-latch position.

(4) Apply battery voltage and check operation of the lower tail gate lock motor RH.

OK:

Measurement Condition

Specified Condition

Battery positive (+) → Terminal 5 (ACT+)

Battery negative (-) → Terminal 6 (ACT-)

Latch turns to over-latch position

If the result is not as specified, replace the lower tail gate lock assembly RH.


(b) Resistance check:

(1) Measure the resistance according of the value(s) in the table below.

Standard Resistance:

Close Position Switch

Tester Connection

Condition

Specified Condition

7 (HND) - 8 (GND)

Over-latch

Below 1 Ω

7 (HND) - 8 (GND)

Full-latch

10 kΩ or higher

7 (HND) - 8 (GND)

Half-latch

10 kΩ or higher

7 (HND) - 8 (GND)

Open-latch

10 kΩ or higher

If the result is not as specified, replace the lower tail gate lock assembly RH.

Lower Tail Gate Courtesy Switch:

Tester Connection

Condition

Specified Condition

2 (FUL) - 3 (E1)

Over-latch

10 kΩ or higher

2 (FUL) - 3 (E1)

Full-latch

10 kΩ or higher

2 (FUL) - 3 (E1)

Half-latch

Below 1 Ω

2 (FUL) - 3 (E1)

Open-latch

Below 1 Ω

If the result is not as specified, replace the lower tail gate lock assembly RH.

Half-latch Switch:

Tester Connection

Condition

Specified Condition

1 (HAF) - 3 (E1)

Over-latch

10 kΩ or higher

1 (HAF) - 3 (E1)

Full-latch

Below 1 Ω

1 (HAF) - 3 (E1)

Half-latch

10 kΩ or higher

1 (HAF) - 3 (E1)

Open-latch

Below 1 Ω

If the result is not as specified, replace the lower tail gate lock assembly RH.

Pawl Switch:

Tester Connection

Condition

Specified Condition

4 (POL) - 3 (E1)

Over-latch

10 kΩ or higher

4 (POL) - 3 (E1)

Full-latch

Below 1 Ω

4 (POL) - 3 (E1)

Half-latch

Below 1 Ω

4 (POL) - 3 (E1)

Open-latch

10 kΩ or higher

If the result is not as specified, replace the lower tail gate lock assembly RH.
