| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Vehicle Interior | Section: Seat | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003GG8000X |
| Title: SEAT: POWER SEAT SWITCH (w/ Automatic Folding-up Function): INSPECTION (2008 LX570) | ||
INSPECTION

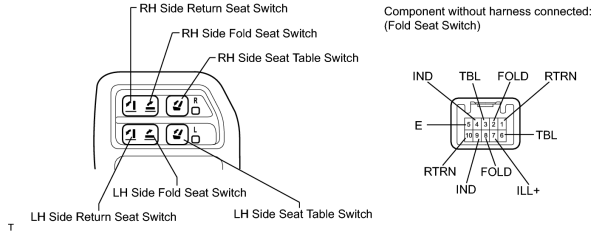

1. INSPECT FOLD SEAT SWITCH ASSEMBLY
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
3 (TBL) - 5 (E) |
LH side seat table switch pressed |
Below 1 Ω |
|
8 (FOLD) - 5 (E) |
LH side fold seat switch pressed |
|
|
10 (RTRN) - 5 (E) |
LH side return seat switch pressed |
|
|
6 (TBL) - 5 (E) |
RH side seat table switch pressed |
|
|
2 (FOLD) - 5 (E) |
RH side fold seat switch pressed |
|
|
1 (RTRN) - 5 (E) |
RH side return seat switch pressed |
If the result is not as specified, replace the fold seat switch assembly.
(b) Apply battery voltage to the switch connector, and check that the fold seat switch illuminates.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → 7 (ILL+) Battery negative (-) → 5 (E) |
Switch illuminates |
|
Battery positive (+) → 4 (IND) Battery negative (-) → 5 (E) |
L indicator illuminates |
|
Battery positive (+) → 9 (IND) Battery negative (-) → 5 (E) |
R indicator illuminates |
If the result is not as specified, replace the fold seat switch assembly.
|
|
