Title: AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: PATTERN SELECT SWITCH: REMOVAL (2008 LX570)

REMOVAL

1. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (w/ Cool Box): REMOVAL (2008 LX570)+

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (w/ Cool Box): REMOVAL (2008 LX570)+

3. REMOVE PARKING BRAKE HOLE COVER INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (w/ Cool Box): REMOVAL (2008 LX570)+

4. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (w/ Cool Box): REMOVAL (2008 LX570)+

5. REMOVE POSITION INDICATOR HOUSING ASSEMBLY



(a) Disconnect the 2 connectors.

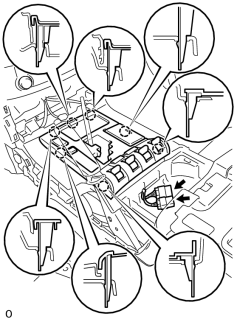

(b) Detach the 7 claws and remove the position indicator housing.

6. REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY



(a) Disconnect the connector.

(b) Using a small screwdriver, detach the 2 claws and remove the pattern select switch from the position indicator housing.
