RX400h · Service Manual HYBRID SYSTEM

REMOVAL

Removal / installation


1. REMOVE ACCELERATOR PEDAL ROD ASSEMBLY

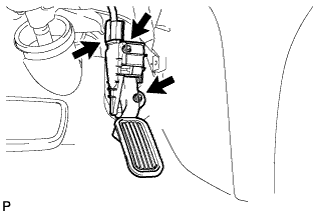

  1. A111576
    Disconnect the connector from the accelerator pedal rod assembly.

  1. Remove the 2 nuts and accelerator pedal rod assembly.
