P2102 Conditions (a) and (b) continue for 2.0 seconds (1 trip detection logic):(a) Throttle actuator duty ratio 80...

SYSTEM DESCRIPTION

The throttle actuator is operated by the ECM (Included in HV Control ECU) and opens and closes the throttle valve using gears.
The opening angle of the throttle valve is detected by the Throttle Position (TP) sensor, which is mounted on the throttle body. The TP sensor provides feedback to the ECM. This feedback allows the ECM to appropriately control the throttle actuator and monitor the throttle opening angle as the ECM responds to driver inputs.

HINT:

This ETCS (Electronic Throttle Control System) does not use a throttle cable.

DTC No.	DTC Detection Condition	Trouble Area
P2102	Conditions (a) and (b) continue for 2.0 seconds (1 trip detection logic): (a) Throttle actuator duty ratio 80 % or more (b) Throttle actuator current 0.5 A or less	Open in throttle actuator circuit Throttle actuator HV Control ECU
P2103	Throttle control motor current 7A or more (0.6 seconds) (1 trip detection logic)	Short in throttle actuator circuit Throttle actuator Throttle valve Throttle body assembly HV Control ECU

FAIL-SAFE

When either of these DTCs, as well as other DTCs relating to ETCS (Electronic Throttle Control System) malfunctions, is set, the ECM (Included in HV Control ECU) enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator off, and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.
Fail-safe mode continues until a pass condition is detected, and the engine switch is then turned off.

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

1. Read freeze frame data using an intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data, from the time the malfunction occurred.

2. The throttle actuator current (Throttle Motor Current) and the throttle actuator duty ratio (Throttle Motor Duty (Open) / Throttle Motor Duty (Close)) can be read using the intelligent tester. However the ECM shuts off the throttle actuator current when the ETCS malfunctions.


1. INSPECT THROTTLE BODY ASSEMBLY (RESISTANCE OF THROTTLE CONTROL MOTOR)

1. Disconnect the T2 throttle body connector.

2. Measure the resistance between the terminals of the throttle control motor.

   Standard resistance:

   Tester Connection	Specified Condition
   M+ (T2-2) - M- (T2-1)	0.3 to 100 Ω at 20°C (68°F)

3. Reconnect the throttle body connector.

NG	REPLACE THROTTLE BODY ASSEMBLY

OK

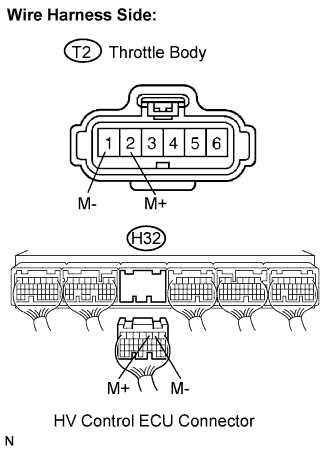

2. CHECK HARNESS AND CONNECTOR (THROTTLE CONTROL MOTOR - HV CONTROL ECU)

1. Disconnect the T2 throttle body connector.

2. Disconnect the H32 HV Control ECU connector.

3. Measure the resistance.

   Standard resistance (Check for open):

   Tester Connection	Specified Condition
   M+ (T2-2) - M+ (H32-3)	Below 1 Ω
   M- (T2-1) - M- (H32-2)	Below 1 Ω

   Standard resistance (Check for short):

   Tester Connection	Specified Condition
   M+ (T2-2) or M+ (H32-3) - Body ground	10 kΩ or higher
   M- (T2-1) or M- (H32-2) - Body ground	10 kΩ or higher

4. Reconnect the throttle body connector.

5. Reconnect the HV Control ECU connector.

NG	REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

3. INSPECT THROTTLE BODY ASSEMBLY

1. Check for foreign objects between the throttle valve and the housing.

   OK:

   No foreign objects.


NG	REMOVE FOREIGN OBJECT AND CLEAN THROTTLE BODY

OK

4. INSPECT THROTTLE VALVE

1. Check if the throttle valve opens and closes smoothly.

   OK:

   Throttle valve opens and closes smoothly.


NG	REPLACE THROTTLE BODY ASSEMBLY

OK
REPLACE HV CONTROL ECU
