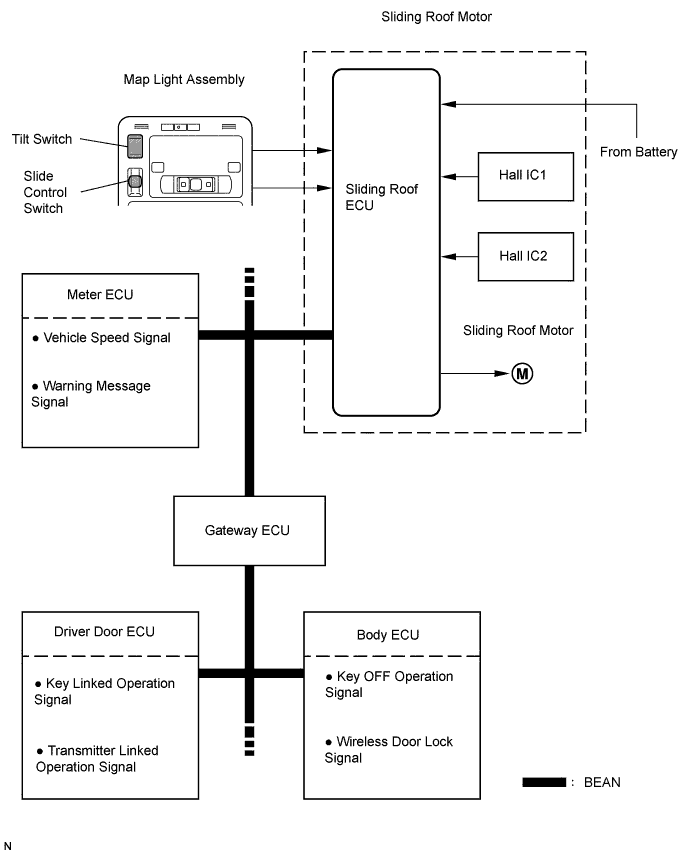

SYSTEM DIAGRAM
System information
| Sender |
Receiver |
Signal |
Line |
| Sliding Roof ECU |
Meter ECU |
Warning message signal |
BEAN |
| Sliding Roof ECU |
Meter ECU |
Sliding roof TILT UP warning signal |
BEAN |
| Sliding Roof ECU |
Meter ECU |
Sliding roof SLIDE OPEN warning signal |
BEAN |
| Driver Door ECU |
Sliding Roof ECU |
Key-linked operation signal |
BEAN |
| Driver Door ECU |
Sliding Roof ECU |
Transmitter linked operation signal |
BEAN |
| Body ECU |
Sliding Roof ECU |
Key-off operation signal |
BEAN |
| Body ECU |
Sliding Roof ECU |
Wireless door lock signal |
BEAN |
