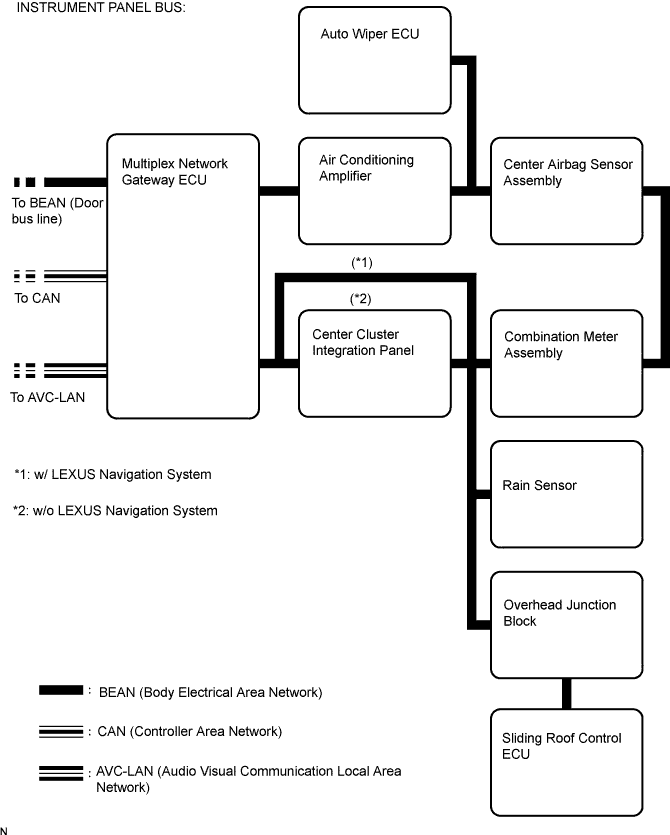

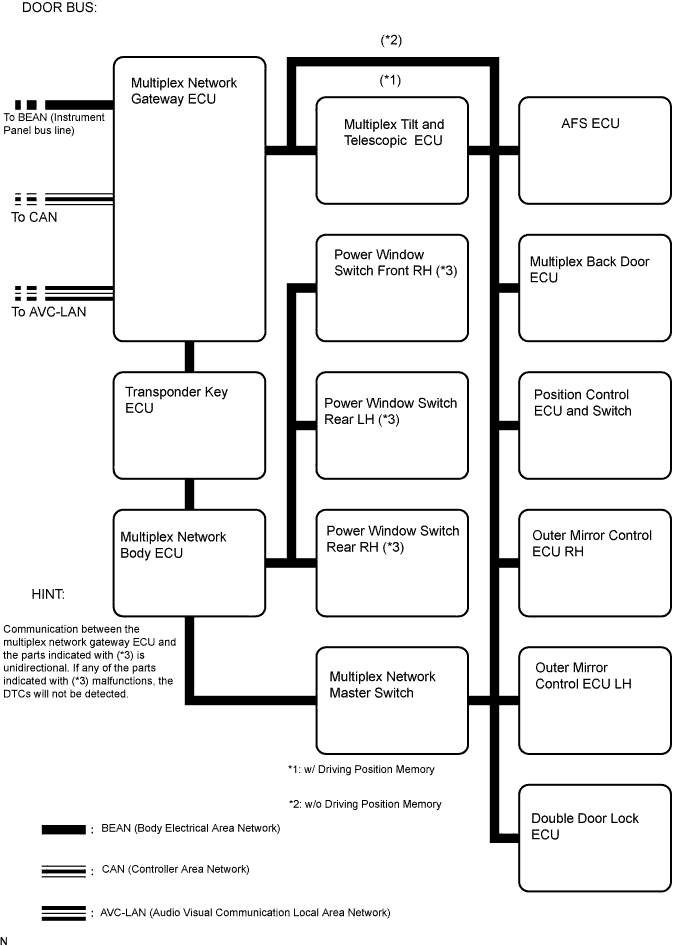

SYSTEM DIAGRAM
System information
| Item |
Details |
| Number of BEAN connected ECUs*1 |
21 |
| Number of CAN connected ECUs*1 |
11 |
| Number of AVC-LAN connected ECUs*1 |
6 |
| Gateway function between BEAN and diagnosis |
Network gateway ECU |
| Gateway function between BEAN and AVC-LAN |
Network gateway ECU |
| Gateway function between BEAN and CAN |
Network gateway ECU |
| ECU in charge of vehicle customization information |
Network gateway ECU |
| Protocol |
CAN, BEAN and AVC-LAN |
- HINT:
- *1: Optional ECUs are also included.
