RX400h · Service Manual COMMUNICATION SYSTEM

Steering Sensor Communication Stop Mode

Circuit diagnosis

DESCRIPTION

Detection Item
 Symptom
 Suspected Area
STEERING SENSOR COMMUNICATION STOP MODE
  1. "Steering sensor" is not displayed on the "Communication Bus Check" screen of the intelligent tester
  2. Applies to "STEERING SENSOR COMMUNICATION STOP MODE" in the "DTC COMBINATION TABLE"
  1. Power source circuit of the steering sensor
  2. Steering sensor

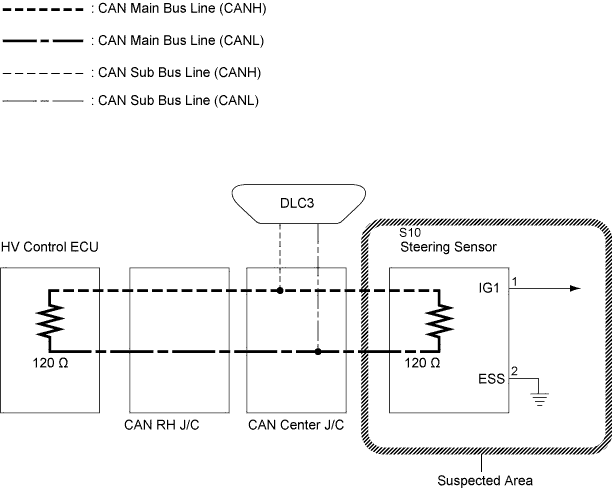

WIRING DIAGRAM

C113737E05

INSPECTION PROCEDURE


1. CHECK WIRE HARNESS (IG, ESS)

  1. Turn the ignition switch off.

  1. G030155E21
    Disconnect the steering sensor connector (S10).

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		 Condition
    		 Specified Value
    S10-2 (ESS) - Body ground
    		Always
    		 Below 1 Ω

  1. Measure the voltage according to the value(s) in the table below.

    Standard Voltage:
    Tester Connection
    		 Condition
    		 Specified Value
    S10-1 (IG1) - Body ground
    		 Ignition switch on
    		 10 to 14 V



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE STEERING SENSOR
