Yaw Rate Sensor Communication Stop Mode

DESCRIPTION

Detection Item	Symptom	Suspected Area
YAW RATE SENSOR COMMUNICATION STOP MODE	"Yaw/Decelerate" is not displayed on the "Communication Bus Check" screen of the intelligent tester Applies to "YAW RATE SENSOR COMMUNICATION STOP MODE " in the "DTC COMBINATION TABLE"	Power source circuit of the yaw rate sensor Yaw rate sensor sub bus line or connector Yaw rate sensor

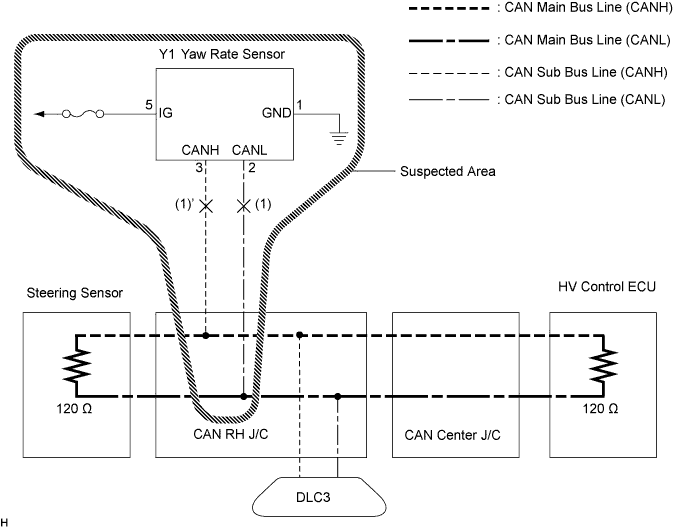

WIRING DIAGRAM

INSPECTION PROCEDURE

1. CHECK CAN BUS LINE FOR DISCONNECTION (YAW RATE SENSOR SUB BUS LINE)

1. Turn the ignition switch off.

2. Disconnect the yaw rate sensor connector (Y1).

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance:

   Tester Connection	Condition	Specified Value
   Y1-3 (CANH) - Y1-2 (CANL)	Disconnect the negative auxiliary battery cable	54 to 69 Ω

NG	REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)

OK

2. CHECK WIRE HARNESS (IG, GND)

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance:

   Tester Connection	Condition	Specified Value
   Y1-1 (GND) - Body ground	Always	Below 1 Ω

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage:

   Tester Connection	Condition	Specified Value
   Y1-5 (IG) - Body ground	Ignition switch on	10 to 14 V

NG	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK
REPLACE YAW RATE SENSOR
