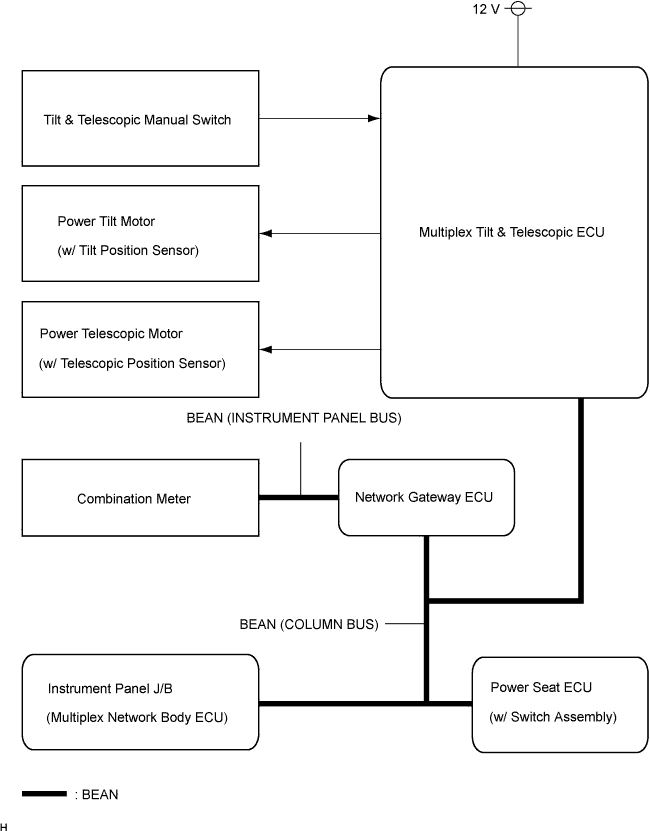

SYSTEM DIAGRAM
System information
| Transmitting ECU (Transmitter) |
Receiving ECU |
Signal |
Communication method |
| Combination Meter |
Tilt & Telescopic ECU |
Vehicle speed signal |
BEAN |
| Instrument Panel J/B (Body ECU) |
Tilt & Telescopic ECU |
|
BEAN |
| Instrument Panel J/B (Body ECU) |
Tilt & Telescopic ECU |
Diagnosis tool demand signal |
BEAN |
| Instrument Panel J/B (Body ECU) |
Tilt & Telescopic ECU |
DTC clear signal |
BEAN |
| Position Control ECU & Switch Assembly (Driver Seat ECU) |
Tilt & Telescopic ECU |
Tilt & telescopic reproduction command signal |
BEAN |
| Position Control ECU & Switch Assembly (Driver Seat ECU) |
Tilt & Telescopic ECU |
Memory signal |
BEAN |
| Tilt & Telescopic ECU |
Position Control ECU & Switch Assembly (Driver Seat ECU) |
Tilt & telescopic reproduction complete signal |
BEAN |
| Tilt & Telescopic ECU |
Driver Side J/B ECU (Body ECU) |
Diagnosis tool answer signal |
BEAN |
