RX400h · Service Manual HEATER & AIR CONDITIONING SYSTEM

B1476/76

Diagnostic trouble codes

DESCRIPTION

The w/ motor compressor assembly stops compressor control and outputs DTC if the rotation load is too great or too small while controlling motor rotation in the w/ motor compressor assembly.
Possible causes are refrigerant gas leakage, overcharged refrigerant gas, insufficient cooling because of a condenser fan circuit malfunction, or compressor lock.
DTC No.
 DTC Detecting Condition
 Trouble Area
B1476/76
 Motor's rotation load while the compressor is operating is too great or too small.
  1. Refrigerant volume
  1. w/ Motor compressor assembly
  1. Cooling fan system
  1. SFI system

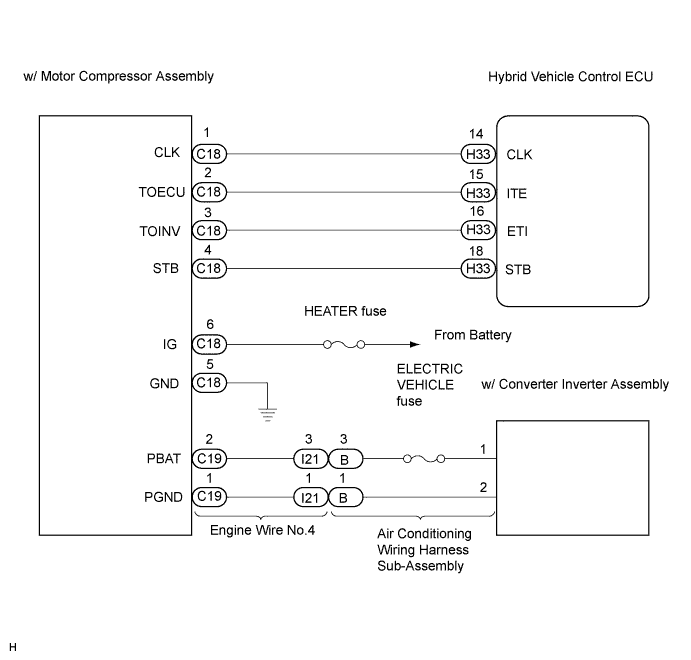

WIRING DIAGRAM

E109280E03

INSPECTION PROCEDURE


1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch ON and the intelligent tester main switch on.

  1. Select the item below in the ACTIVE TEST and then check that the fan operates.

ACTIVE TEST / AIR CONDITIONER
Item
 Test Details/Display
(Range)
 Diagnostic Note
ELECTRICAL FAN
 Electrical fan / OFF, ON
 -

OK:
Electrical fan operates smoothly.



 NG
GO TO COOLING SYSTEM
OK


2. CHECK DIAGNOSTIC TROUBLE CODE

  1. Check if DTCs for the SFI system are output using the intelligent tester.

OK:
DTCs are not output in the SFI system.



 NG
GO TO SFI SYSTEM
OK


3. CHECK REFRIGERANT VOLUME

  1. Check the sight glass on the liquid tube.

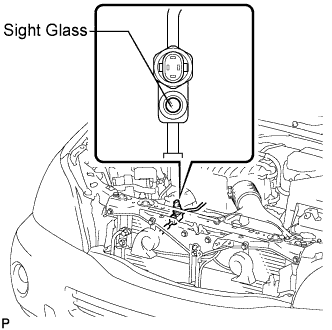

    1. E108160E02
      LHD:

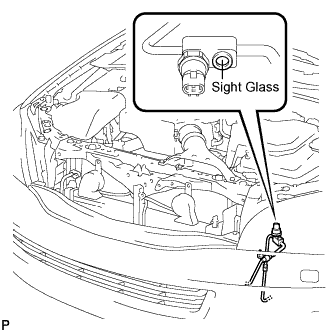

    2. E110731E01
      RHD:

  1. Prepare the vehicle according to the table below.

    Item
    		 Condition
    Vehicle door
    		 All fully open
    Temperature setting
    		 MAX. COLD
    Blower speed
    		 HI
    A/C
    		 ON
    Ignition switch
    		 ON

  1. Compare the sight glass to the following chart.

    Item
    		 Symptom
    		 Amount of refrigerant
    		 Corrective Actions
    1
    		 Bubbles exist
    		 Insufficient*
    1. Check for gas leakage and repair if necessary.
    2. Add refrigerant until bubbles disappear
    2
    		 No bubbles exist
    		 Empty, insufficient or excessive
    		 Refer to 3 and 4
    3
    		 No temperature difference between compressor inlet and outlet
    		 Empty or nearly empty
    1. Check for gas leakage with gas leak detector and repair if necessary.
    2. Evacuate the A/C system and recharge the proper amount of refrigerant.
    4
    		 Considerable temperature difference between compressor inlet and outlet
    		 Proper or excessive
    		 Refer to 5 and 6
    5
    		 Immediately after air conditioning is turned off, refrigerant clears
    		 Excessive
    1. Discharge refrigerant.
    2. Evacuate the A/C system and recharge the proper amount of refrigerant.
    6
    		 Immediately after air conditioning is turned off, refrigerant foams and then becomes clear
    		 Proper
    		 -

*: Bubbles in the sight glass with the vehicle's interior above 35°C (95°F) can be considered normal if cooling is sufficient.

NOTICE:
  1. If the amount of refrigerant is low, the compressor may stop in approximately 1 minute.
  2. If the compressor stops because of any trouble in the w/ motor compressor assembly, inspection may not be possible. For such cases, the w/ motor compressor assembly should be replaced.

OK:
Immediately after air conditioning is turned off, refrigerant foams and then becomes clear.



 NG
CHARGE REFRIGERANT
OK

REPLACE W/MOTOR COMPRESSOR ASSEMBLY
