INSTALLATION
Removal / installation
| 1. INSTALL CENTER CLUSTER INTEGRATION SWITCH |
Install the connector.
Install the center cluster integration switch with the 2 bolts.

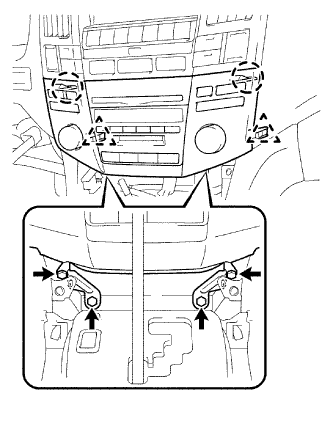

| 2. INSTALL RADIO AND RECEIVER ASSEMBLY WITH BRACKET |
Install the No.2 radio bracket with the 3 bolts.
Install the No.1 radio bracket with the 3 bolts.
Connect the connectors.
Engage the 2 claws and the 2 clips.
Install the radio receiver with bracket with the 4 bolts.

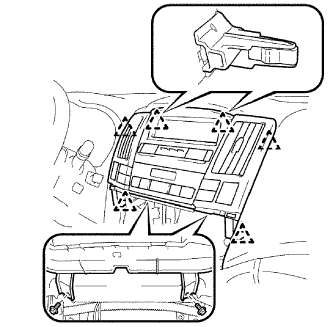

| 3. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER |
Connect the connectors.
Engage the 2 clips and install the instrument panel finish panel lower.
| 4. INSTALL CONSOLE PANEL UPPER FRONT |
Engage the 4 clips and install the console panel upper front.
