REMOVAL
Removal / installation
| 1. REMOVE CONSOLE PANEL UPPER FRONT |
Disengage the 4 clips and remove the console panel upper front.
| 2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER |
Disengage the 2 clips.
Disconnect the connectors and remove the instrument panel finish panel lower.
| 3. REMOVE RADIO AND RECEIVER ASSEMBLY WITH BRACKET |
Remove the 4 bolts.

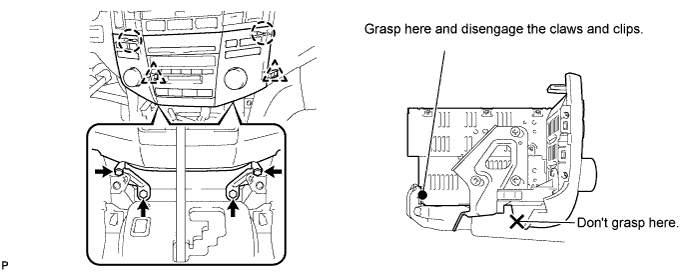

Disengage the 2 claws and the 2 clips.
Disconnect the connectors.
Remove the radio receiver with bracket.
Remove the 3 screws and the No.1 radio bracket.
Remove the 3 screws and the No.2 radio bracket.
| 4. REMOVE CENTER CLUSTER INTEGRATION SWITCH |
Remove the 2 bolts.
Release the 6 clips.
Disconnect the connector and remove center cluster integration switch.
